Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

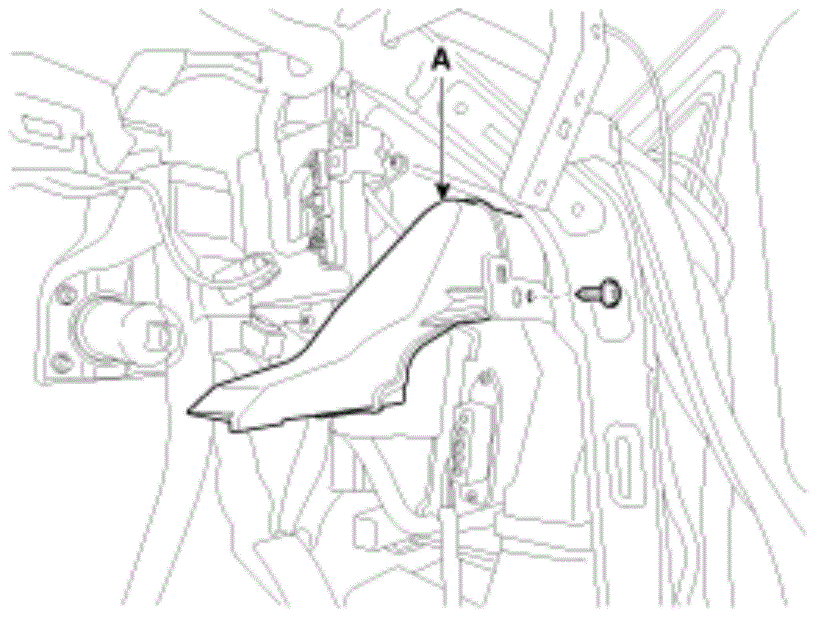

  3. Remove the shower duct [LH] (A) after loosening the screw.
    G13047771Courtesy of KIA MOTORS AMERICA, INC.

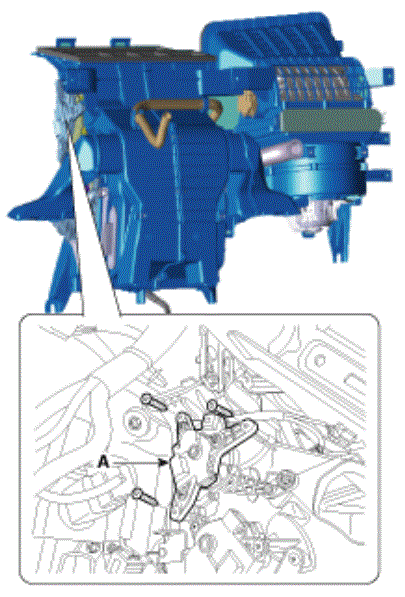

  4. Disconnect the connector and then remove the mode control actuator (A) after loosening the mounting screws.
    G13047772Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
