Components & Components Location: Components

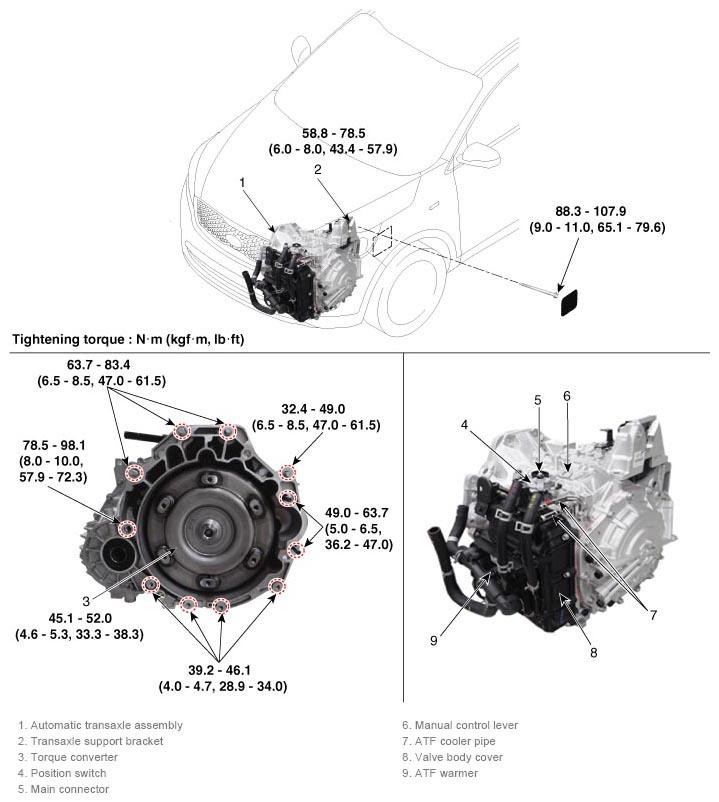

Fig 1: Automatic Transaxle System Components With Torque Specification
G12885890Courtesy of KIA MOTORS AMERICA, INC.
