Schematic Diagrams
>>
Schematic Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

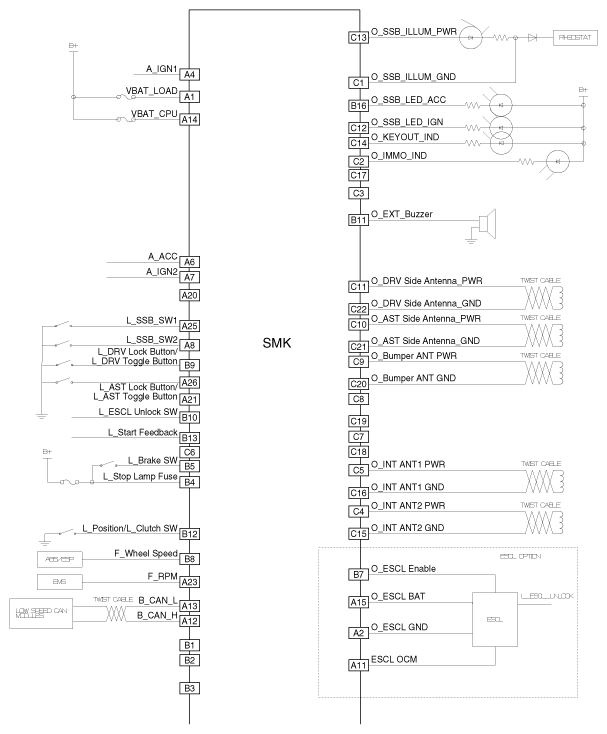

Schematic Diagrams
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
