Occupant Classification System (OCS) Mat

WARNING: This page is about a different car, the 2020 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable, and wait for at least thirty seconds before beginning to work.
  2. Remove the front passenger seat assembly.

    (Refer to Body - "FRONT SEAT ")

  3. Disconnect the Occupant Classification System (OCS) mat connector.
  4. Remove the front seat cushion assembly

    (Refer to Body - "FRONT SEAT CUSHION COVER ")

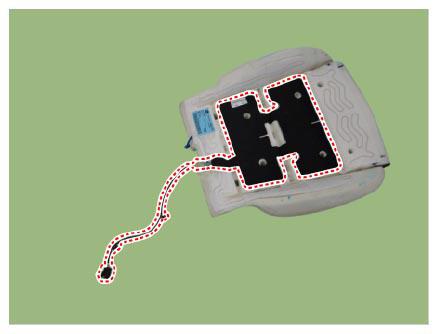

    G12858626Courtesy of KIA MOTORS AMERICA, INC.
