Components Location (1)

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

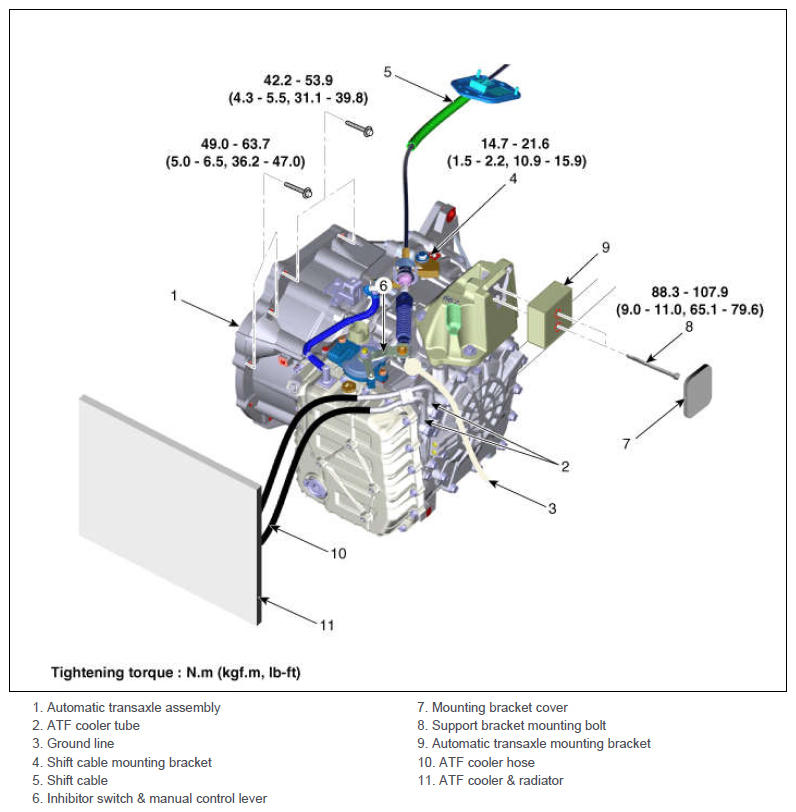

Fig 1: Locating Automatic Transaxle Components With Torque Specification (1)
G12598756Courtesy of HYUNDAI MOTOR AMERICA
