Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

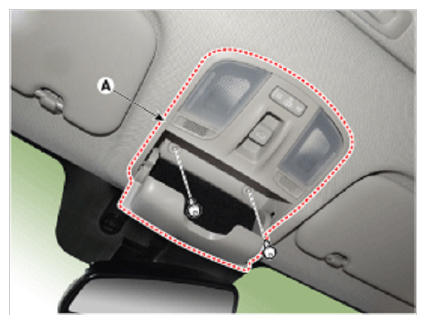

  2. Remove the mounting screws (2EA).

    And then remove the overhead console (A).

    G12597841Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the overhead console after disconnect the connector (A).
    G12597842Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the overhead console lamp (B) by turning the socket.
G12597843Courtesy of HYUNDAI MOTOR AMERICA
