Repair Procedures: Replacement
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Loosen the rear console mounting screws.

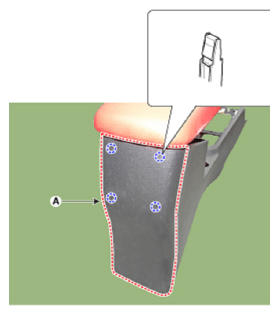

- Using a screwdriver or remover, remove the rear console cover (A).
- To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin - type retainers).
