Release Residual Pressure In Fuel Line

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • There may be some residual pressure even after "Release Residual Pressure in Fuel Line" work, so cover the hose connection with a shop towel to prevent residual fuel from spilling out before disconnecting any fuel connection.
  1. Turn the ignition switch OFF and disconnect the battery (-) cable.

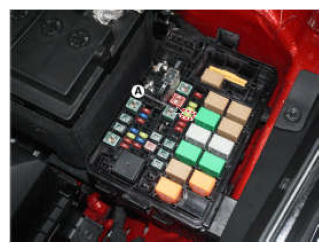

  2. Remove the fuel pump fuse (A).
    G12598591Courtesy of HYUNDAI MOTOR AMERICA
  3. Connect the battery (-) cable.
  4. Start the engine and let idle, and then turn the ignition switch OFF after the engine has stopped on its own.
  5. Disconnect the battery (-) cable, and then install the fuel pump fuse.
  6. Connect the battery (-) cable.
  7. Delete the Diagnostic Trouble Code (DTC) related the fuel pump fuse with the GDS.
CAUTION:
  • When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.

spilling out before disconnecting any fuel connection.
