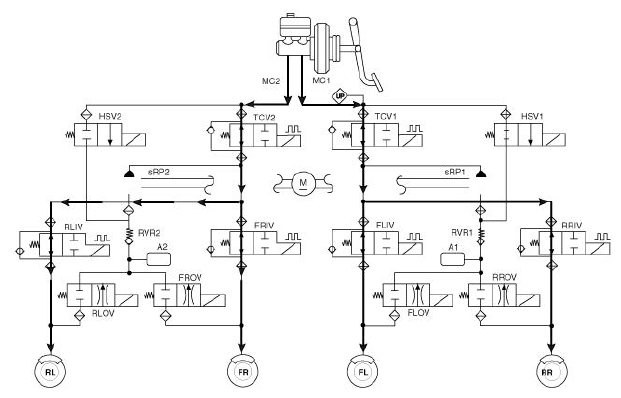

- ESP Non-operation-Normal braking.
Inlet Valve (IV) Outlet Valve (OV) Traction Control Valve (TCV) High Pressure Switch Valve (HSV) Return Pump Normal braking Open Close Open Close OFF NOTE:- IV: Inlet Valve
- OV: Outlet Valve
- RL: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump
- TCV: Traction Control Valve
- HSV: High pressure Switch Valve

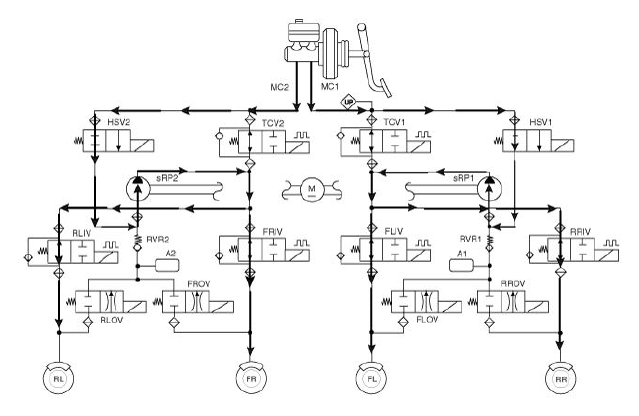

- ESP Increase Mode
Inlet Valve (IV) Outlet Valve (OV) Traction Control Valve (TCV) High Pressure Switch Valve (HSV) Return Pump Normal braking Open Close Close (Partial) Open ON (Motor speed control) NOTE:- IV: Inlet Valve
- OV: Outlet Valve
- RL: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump
- TCV: Traction Control Valve
- HSV: High pressure Switch Valve

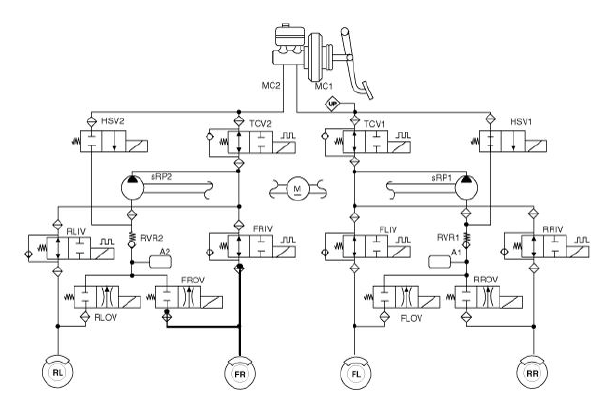

- ESP Hold Mode (FR is only controlled.)
Inlet Valve (IV) Outlet Valve (OV) Traction Control Valve (TCV) High Pressure Switch Valve (HSV) Return Pump Normal braking Close Close Close (Partial) Open OFF - IV: Inlet Valve
- OV: Outlet Valve
- L: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump
- TCV: Traction Control Valve
- HSV: High pressure Switch Valve

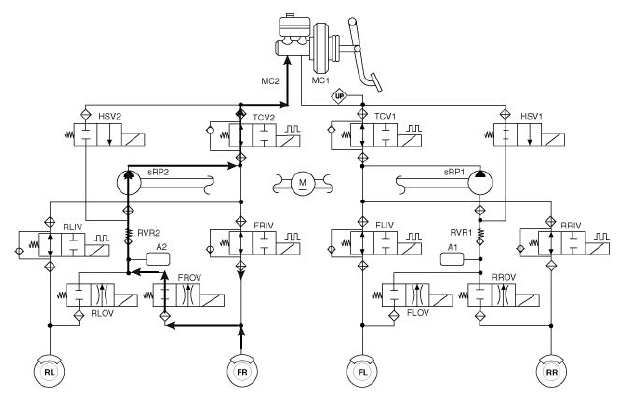

- ESP Decrease Mode (FR is only controlled)
| Inlet Valve (IV) | Outlet Valve (OV) | Traction Control Valve (TCV) | High Pressure Switch Valve (HSV) | Return Pump | |
|---|---|---|---|---|---|
| Normal braking | Close | Open | Close (Partial) | Open | ON (Motor speed low control) |
NOTE:
- IV: Inlet Valve
- OV: Outlet Valve
- RL: Rear left wheel
- FR: Front right wheel
- FL: Front left wheel
- RR: Rear right wheel
- RP: Return pump
- TCV: Traction Control Valve
- HSV: High pressure Switch Valve
