Components & Components Location: Components

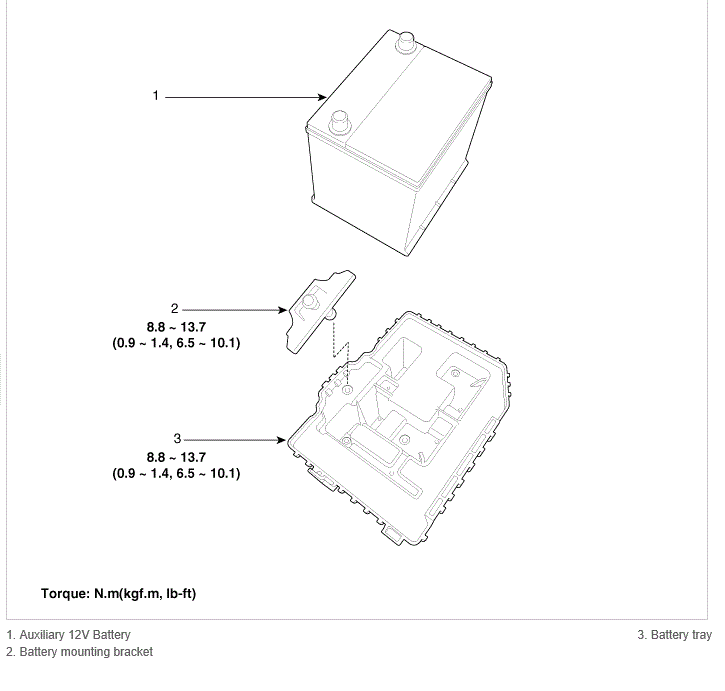

Fig 1: Auxiliary 12V Battery Components With Torque Specification
G12826014Courtesy of KIA MOTORS AMERICA, INC.
