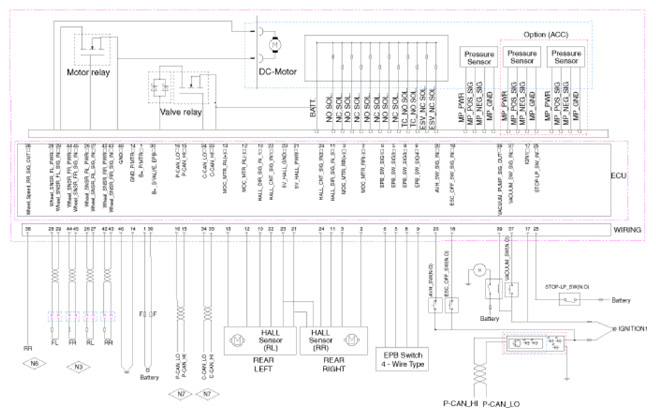

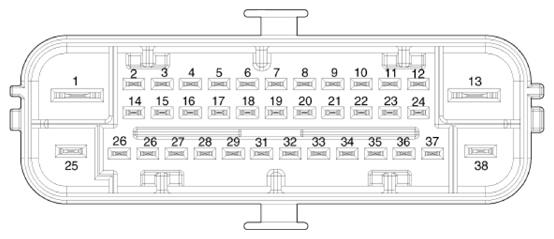

| 1 |
Pump motor power |
| 2 |
Motor ground (RR) |
| 3 |
Motor power (RR) |
| 5 |
EPB Switch signal 2 supply |
| 6 |
EPB Switch signal 1 supply |
| 8 |
EPB Switch signal 3 release |
| 9 |
EPB Switch signal 4 release |
| 10 |
Hall signal input 1 |
| 11 |
Hall signal input 2 |
| 12 |
Motor ground (RL) |
| 13 |
Motor power (RL) |
| 14 |
Pump motor ground |
| 15 |
P-CAN High |
| 16 |
P-CAN Low |
| 17 |
IGN1 |
| 18 |
ESC ON/OFF |
| 20 |
AVH ON/OFF switch signal |
| 21 |
Hall sensor power (5V) |
| 22 |
Hall signal input 1 |
| 23 |
Hall sensor ground |
| 24 |
Hall signal input 2 |
| 25 |
Brake lamp switch signal |
| 26 |
Wheel speed sensor power (RL) |
| 27 |
Wheel speed sensor ground (RL) |
| 28 |
Wheel speed sensor power (FL) |
| 29 |
Wheel speed sensor ground (FL) |
| 30 |
B+ |
| 33 |
C-CAN High |
| 34 |
C-CAN Low |
| 37 |
Vacuum switch signal input |
| 38 |
Wheel speed sensor output (RR) |
| 39 |
Vacuum pump signal output |
| 42 |
Wheel speed sensor power (RR) |
| 43 |
Wheel speed sensor ground (RR) |
| 44 |
Wheel speed sensor power (FR) |
| 45 |
Wheel speed sensor ground (FR) |
| 46 |
Ground |
