Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cylinder head cover.

    (Refer to " CYLINDER HEAD COVER  ")

  2. Set No. 1 cylinder to TDC/compression.

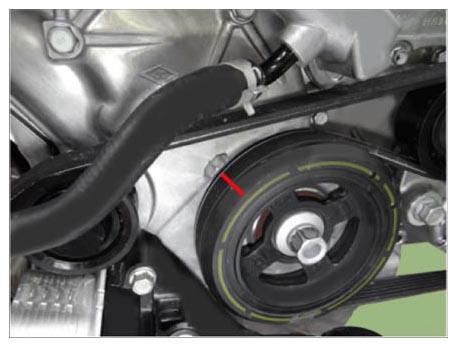

    1. Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.
      G12803188Courtesy of KIA MOTORS AMERICA, INC.

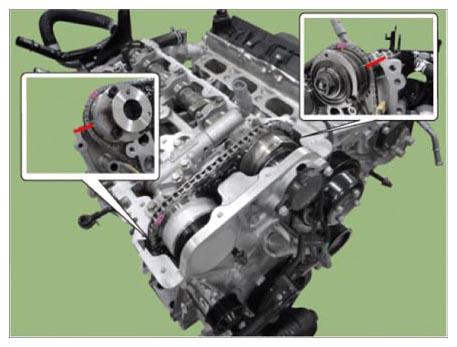

    2. Check that the mark of the camshaft timing sprockets are in straight line on the cylinder head surface as shown in the illustration below. If not, turn the crankshaft clockwise one revolution (360°).

    [RH]

    G12803189Courtesy of KIA MOTORS AMERICA, INC.

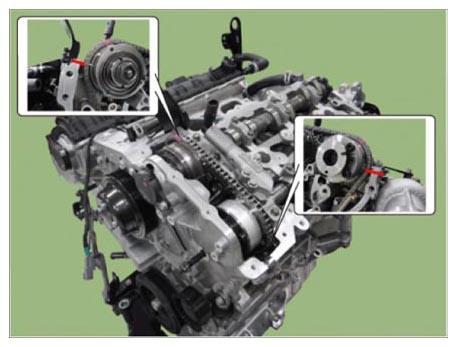

    [LH]

    G12803190Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not rotate engine counterclockwise.
  3. Remove the timing chain cover.

    (Refer to " TIMING CHAIN COVER  ")

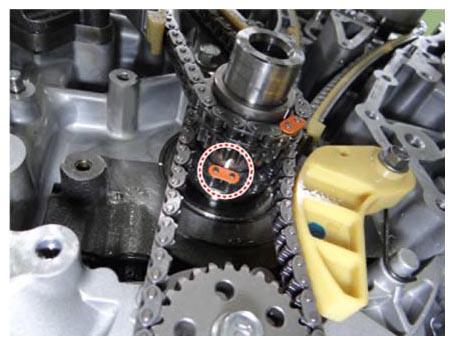

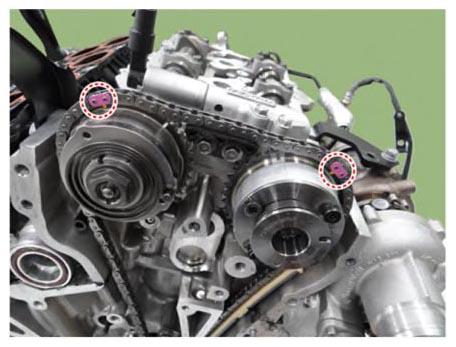

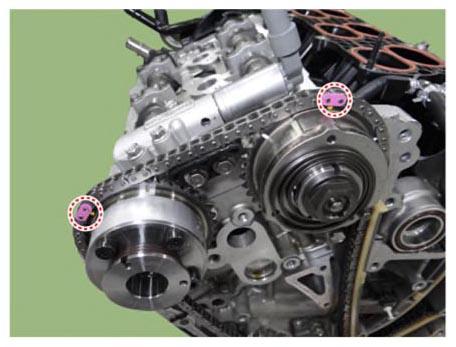

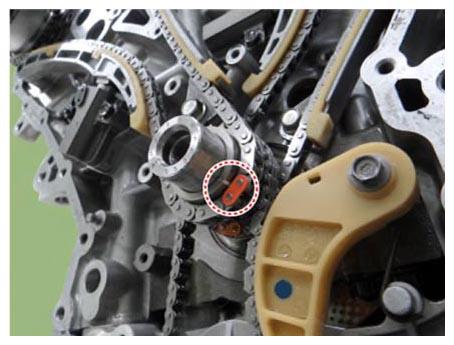

    NOTE: Before removing the timing chain, mark the RH/LH timing chain with an identification based on the location of the sprocket because the identification mark on the chain for TDC (Top Dead Center) can be erased.
    G12803191Courtesy of KIA MOTORS AMERICA, INC.
    G12803192Courtesy of KIA MOTORS AMERICA, INC.
    G12803193Courtesy of KIA MOTORS AMERICA, INC.
    G12803194Courtesy of KIA MOTORS AMERICA, INC.

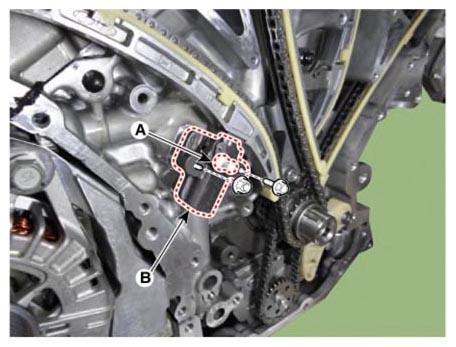

  4. Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin (A) into the hole on the ratchet to hold the compressed piston.
  5. Remove the RH timing chain tensioner (B).
    G12803195Courtesy of KIA MOTORS AMERICA, INC.

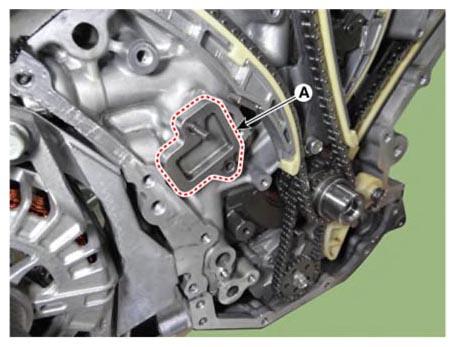

  6. Remove the RH timing chain tensioner adapter (A).
    G12803196Courtesy of KIA MOTORS AMERICA, INC.

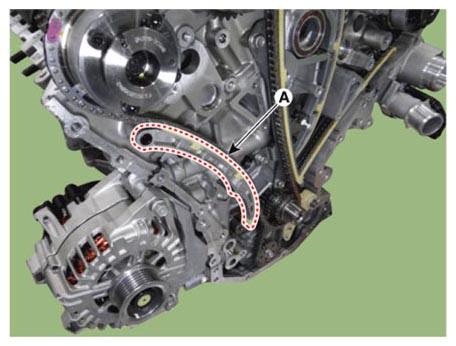

  7. Remove the RH timing chain tensioner arm (A).
    G12803197Courtesy of KIA MOTORS AMERICA, INC.

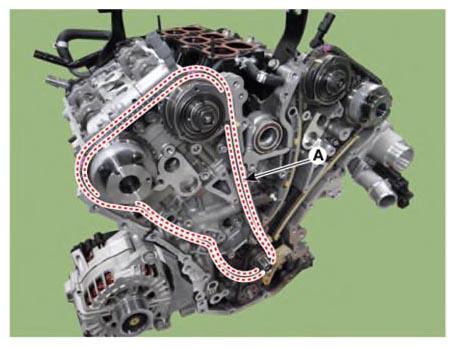

  8. Remove the RH timing chain (A).
    G12803198Courtesy of KIA MOTORS AMERICA, INC.

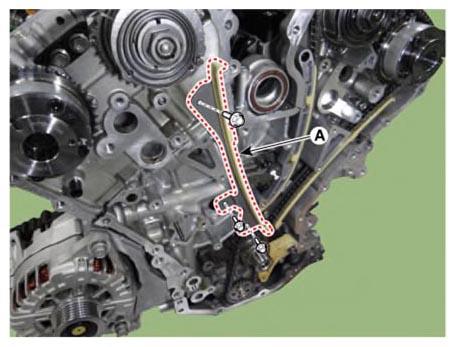

  9. Remove the RH timing chain guide (A).
    G12803199Courtesy of KIA MOTORS AMERICA, INC.

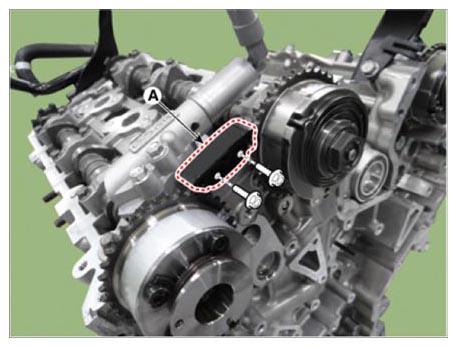

  10. Remove the RH timing chain cam to cam guide (A).
    G12803200Courtesy of KIA MOTORS AMERICA, INC.

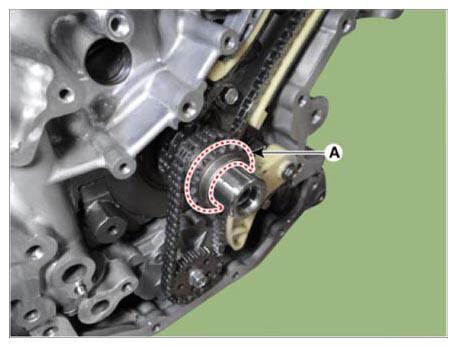

  11. Remove the crankshaft RH timing chain sprocket (A).
    G12803201Courtesy of KIA MOTORS AMERICA, INC.

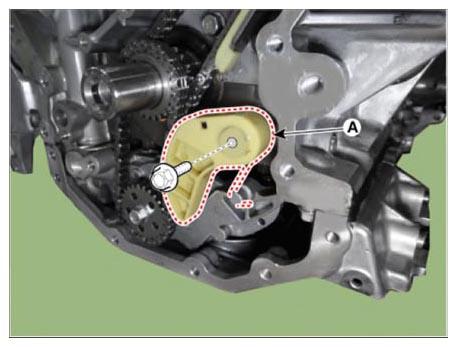

  12. Remove the oil pump chain tensioner (A).
    G12803202Courtesy of KIA MOTORS AMERICA, INC.

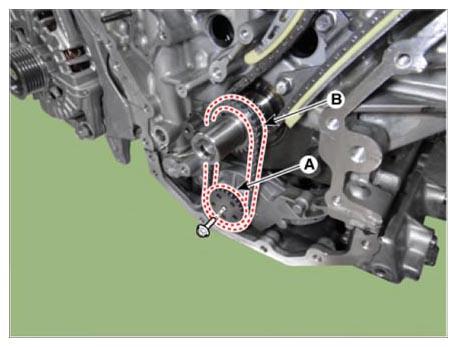

  13. Remove the oil pump chain sprocket (A) and oil pump chain (B).
    G12803203Courtesy of KIA MOTORS AMERICA, INC.

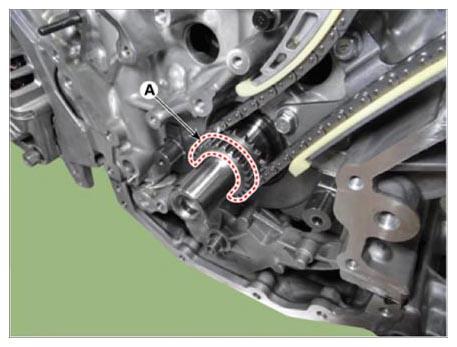

  14. Remove the crankshaft oil pump sprocket (A).
    G12803204Courtesy of KIA MOTORS AMERICA, INC.

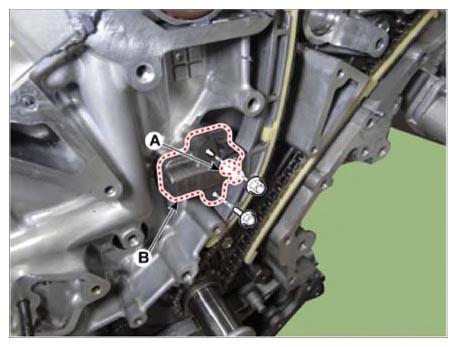

  15. Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin (A) into the hole on the ratchet to hold the compressed piston.
  16. Remove the LH timing chain tensioner (B).
    G12803205Courtesy of KIA MOTORS AMERICA, INC.

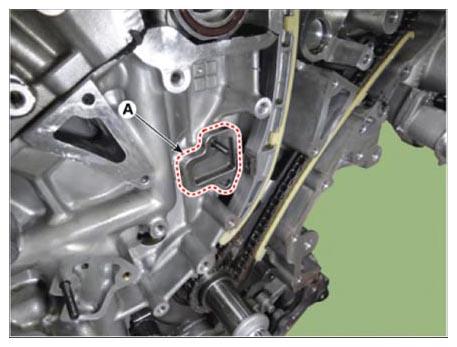

  17. Remove the LH timing chain tensioner adapter (A).
    G12803206Courtesy of KIA MOTORS AMERICA, INC.

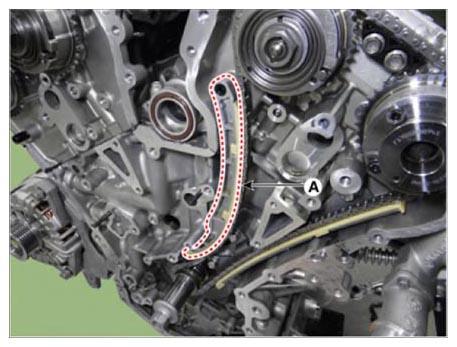

  18. Remove the LH timing chain tensioner arm (A).
    G12803207Courtesy of KIA MOTORS AMERICA, INC.

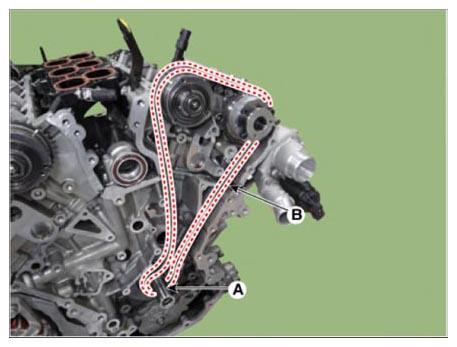

  19. Remove the crankshaft LH timing chain sprocket (A) and LH timing chain (B).
    G12803208Courtesy of KIA MOTORS AMERICA, INC.

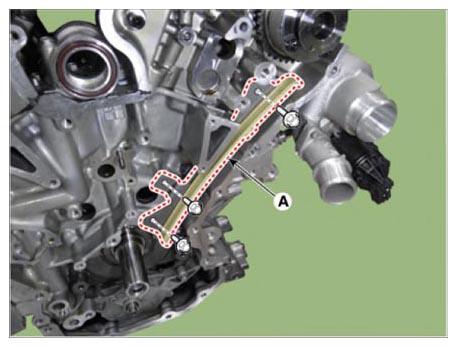

  20. Remove the LH timing chain guide (A).
    G12803209Courtesy of KIA MOTORS AMERICA, INC.

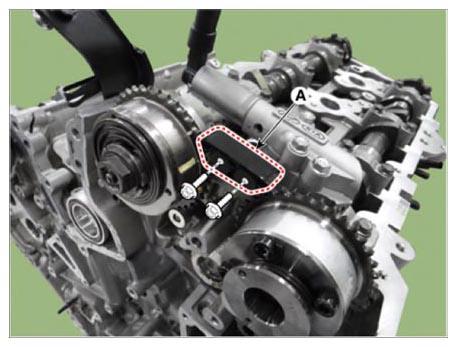

  21. Remove the LH timing chain cam to cam guide (A).
G12803210Courtesy of KIA MOTORS AMERICA, INC.
