Repair Procedures: Removal

Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
Turn the steering wheel so that the front wheels are facing straight ahead.
Remove the driver airbag.
(Refer to " DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

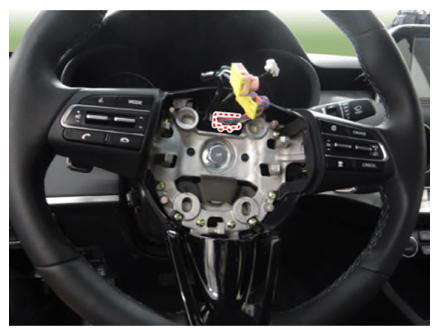

Disconnect the steering wheel connector.

Courtesy of KIA MOTORS AMERICA, INC.

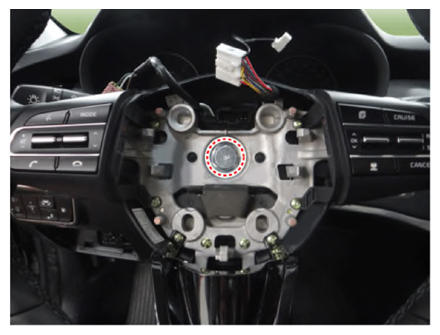

Loosen the steering wheel bolt and then remove the steering wheel.
Tightening torque:

44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Do not hammer on the steering wheel to remove it; it may damage the steering column.
- Do not reuse the bolt.
Install in the reverse order of removal.
