Repair Procedures: Removal

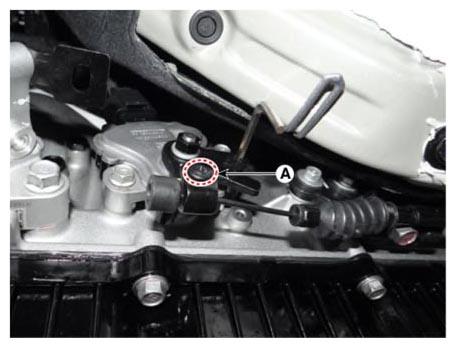

  1. Remove the parking release cable after loosening the fastener (A).
    G12803767Courtesy of KIA MOTORS AMERICA, INC.

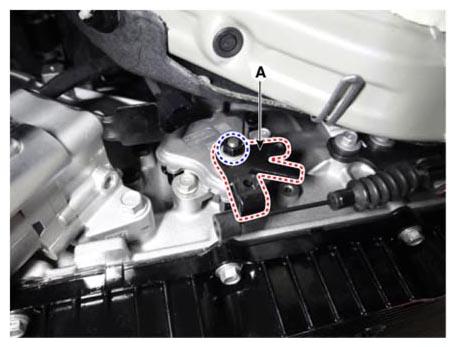

  2. Remove the parking release lever (A) after loosening the nut.
    G12803768Courtesy of KIA MOTORS AMERICA, INC.

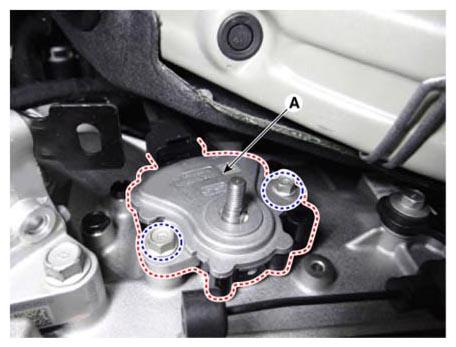

  3. Remove the parking switch (A) after loosening the bolts.
    G12803769Courtesy of KIA MOTORS AMERICA, INC.

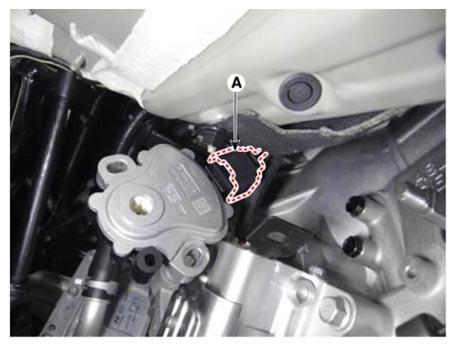

  4. Disconnect the parking switch connector (A).
    G12803770Courtesy of KIA MOTORS AMERICA, INC.
