Trunk Lock Module
- Disconnect the negative battery terminal.
- Remove the trunk lid trim.
(Refer to Body - "TRUNK LID TRIM ")

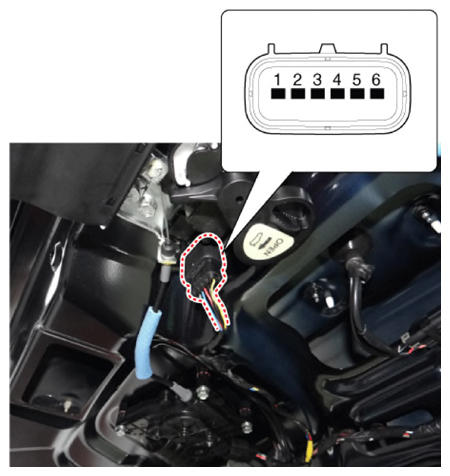

- Disconnect the connector from the tailgate latch.
- Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
Operation Unlock Lock Terminal 3 - X 4 + 2&5 OFF→ON ON→OFF - For inspection on vehicle with power trunk, refer to "POWER TRUNK SYSTEM ".
