Removal And Installation

CAUTION: Put on gloves to protect your hands.

NOTE: Use seat covers to avoid damaging any surfaces.

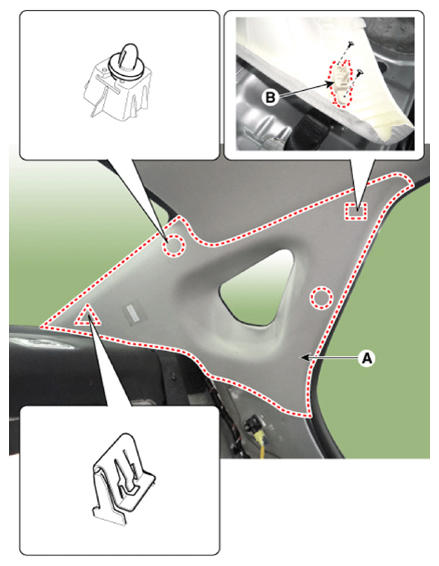

Remove the rear pillar trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

If (B) is damaged after removing rear pillar trim, replace the damaged rear pillar trim with a new one.

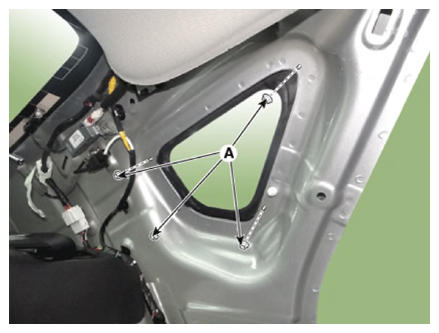

Loosen the quarter fixed glass mounting nuts (A).
Tightening torque:

3.9 - 4.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

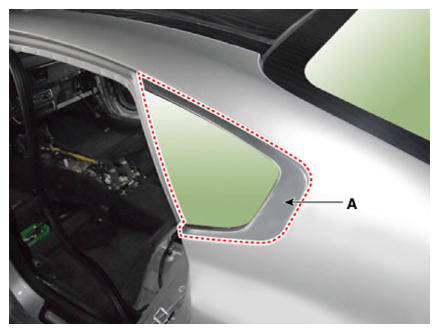

Remove the quarter fixed glass (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
