Repair Procedures: Removal

CAUTION: Put on gloves to protect your hands.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the roof side molding.
(Refer to Body Side Moldings - "ROOF SIDE MOLDING ")
Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
Remove the inside rear view mirror assembly.
(Refer to Mirror - "INSIDE REAR VIEW MIRROR ")
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")
Using a remover, remove the windshield glass side molding assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

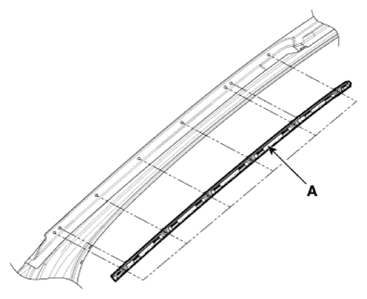

Using a remover, remove the windshield glass molding bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

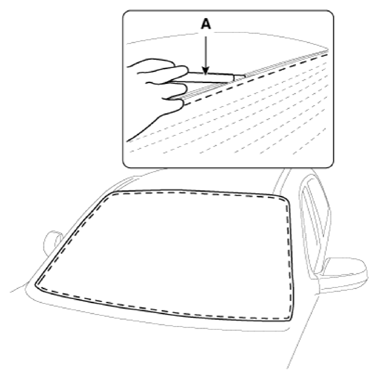

Cut out the adhesive using a cutter (A).
Information
- Use a cutter with a blade length between 8-12 inches.
Courtesy of KIA MOTORS AMERICA, INC.

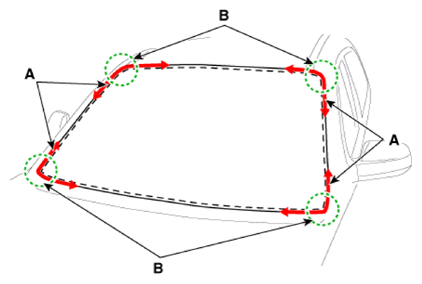

Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Be careful not to burn your hands as excessive heat may be generated when working on wires.
- Be careful not to break the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

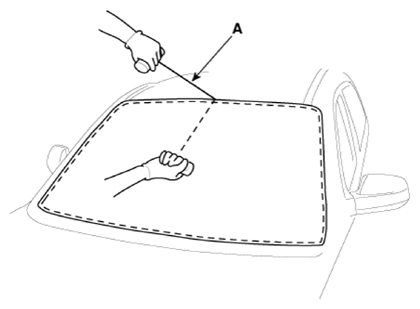

If the piano wire (A) is visible outside the chassis, push it back into the chassis.

Courtesy of KIA MOTORS AMERICA, INC.

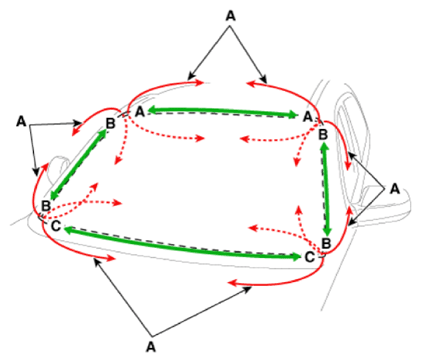

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Be careful not to burn your hands as excessive heat may be generated when working on wires.
- Be careful not to break the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

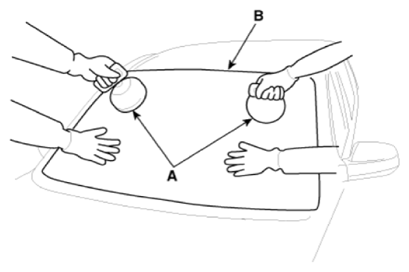

Carefully lift up the windshield glass (B) by using a glass holder (A).

Courtesy of KIA MOTORS AMERICA, INC.
