Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

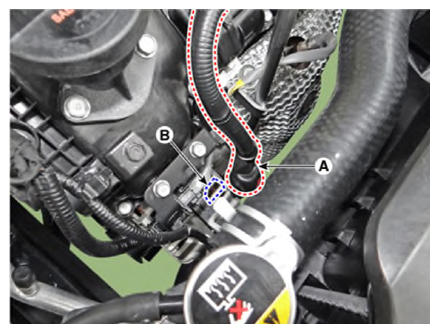

  2. Remove the alternator mounting nut, and then remove the cable(A) from alternator "B" terminal.
  3. Disconnect the alternator connector (B).
    G13403156Courtesy of KIA MOTORS AMERICA, INC.

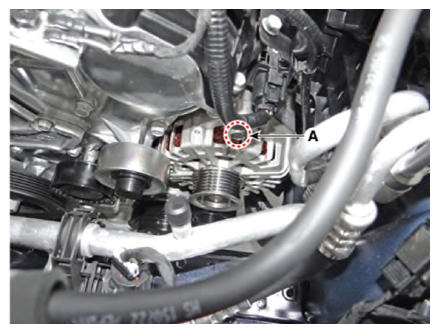

  4. Remove the alternator upper bolt (A).

    Alternator mounting upper bolt:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G13403157Courtesy of KIA MOTORS AMERICA, INC.
  5. Lift the vehicle.
  6. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  7. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

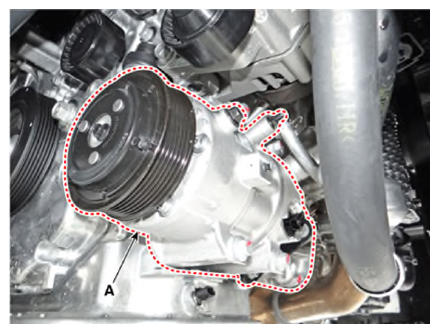

  8. Disconnect the compressor ECV connector, and then by loosening the mounting bolts, widen the gap between the compressor (A) from the engine to remove the alternator.
    G13403158Courtesy of KIA MOTORS AMERICA, INC.

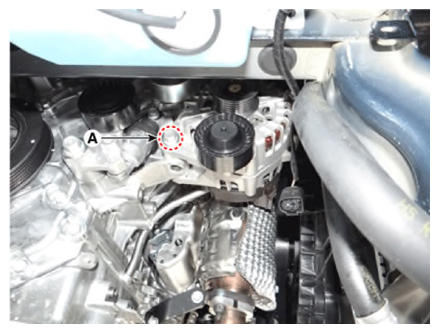

  9. Remove the alternator lower bolt (A).

    Alternator mounting lower bolt:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G13403159Courtesy of KIA MOTORS AMERICA, INC.

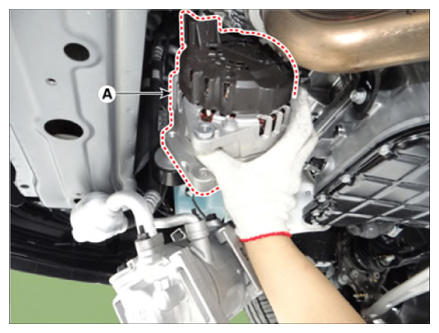

  10. Remove the alternator (A).
    G13403160Courtesy of KIA MOTORS AMERICA, INC.
