Repair Procedures: Inspection

[EVAP. Leakage Test]

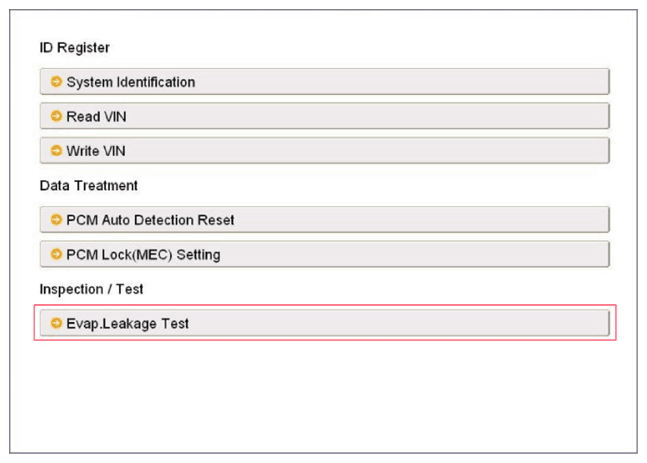

  1. Select "Evap. Leakage Test".
    G13403310Courtesy of KIA MOTORS AMERICA, INC.

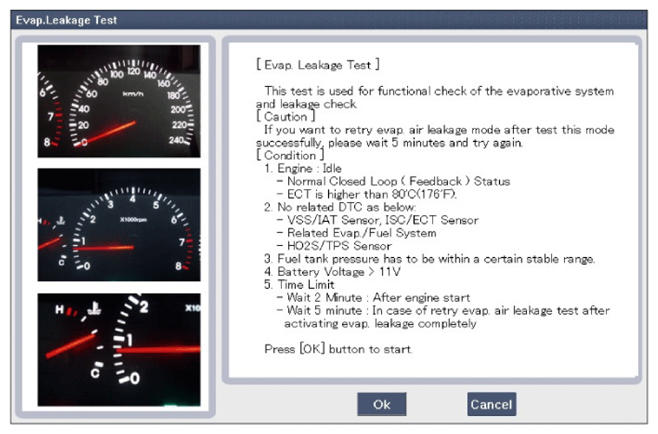

  2. Proceed with the test according to the screen introductions.
    G13403311Courtesy of KIA MOTORS AMERICA, INC.
