Repair Procedures: Removal

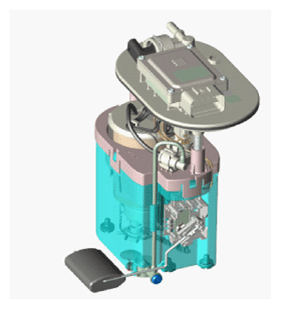

G13403521Courtesy of KIA MOTORS AMERICA, INC.
  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

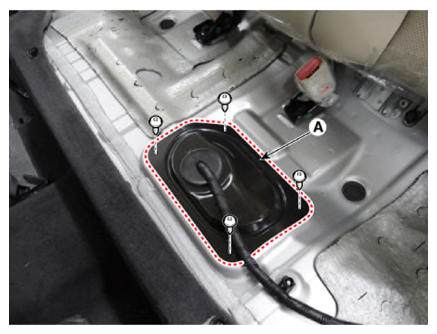

  4. Remove the fuel pump service cover (A).
    G13403522Courtesy of KIA MOTORS AMERICA, INC.

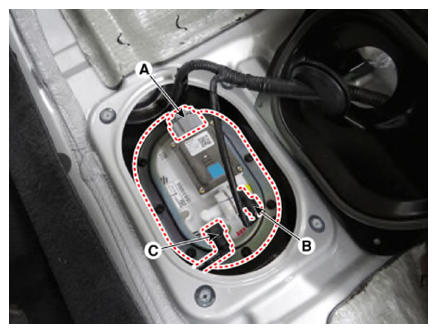

  5. Disconnect the fuel pump control module connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel feed tube quick-connector (C).
    G13403523Courtesy of KIA MOTORS AMERICA, INC.

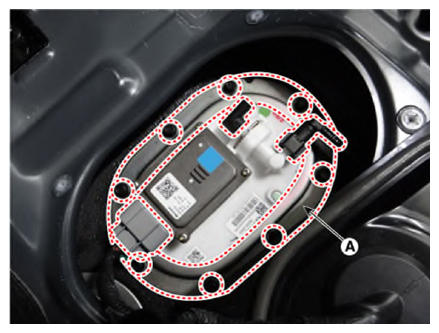

  8. Remove the fuel pump plate cover (A) after loosening the mounting bolts.
  9. Remove the fuel pump from the fuel tank.

    Fuel pump plate cover mounting bolt:

    2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb.ft)

    G13403524Courtesy of KIA MOTORS AMERICA, INC.
