Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the tailgate trim.
(Refer to Tailgate - "TAILGATE TRIM ")

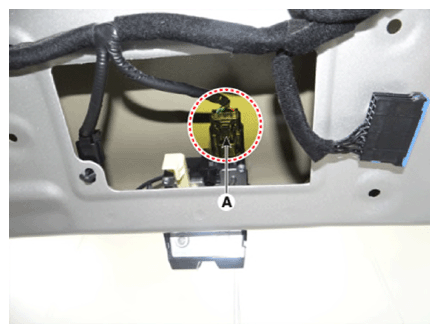

Disconnect the tailgate latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

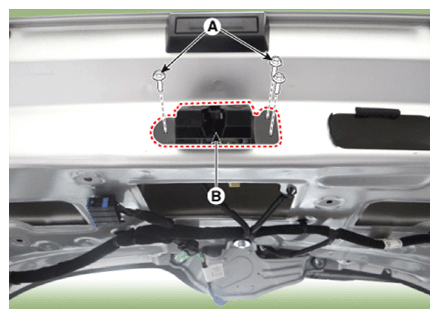

Remove the tailgate latch assembly (B) after loosening the mounting bolts (A).
Tightening torque:

10.8 - 11.8 N.m (1.1 - 1.2 kgf.m, 8.0 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the tailgate locks/unlocks and opens/closes properly.
- Adjust the tailgate alignment.
- Make sure the connectors are connected in properly.
