LED Driver Module

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headlamp.
(Refer to Lighting System - "HEADLAMPS ")

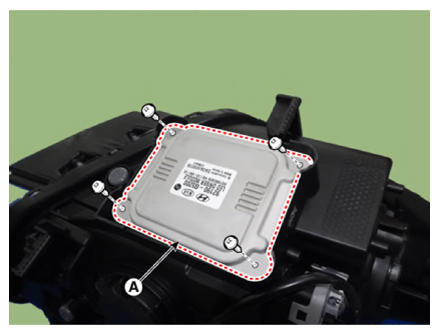

Remove the LED driver module (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

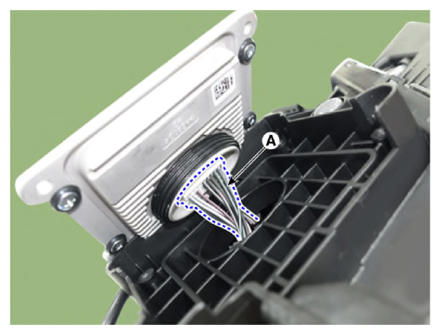

Disconnect the connector (A) from the LED driver module.

Courtesy of KIA MOTORS AMERICA, INC.
