Repair Procedures: Removal
WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

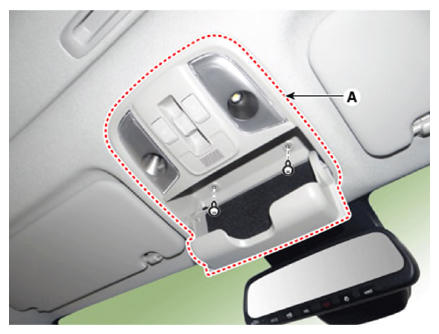

- Remove the overhead console lamp (A) after loosening the mounting screws.
 Courtesy of KIA MOTORS AMERICA, INC.
|

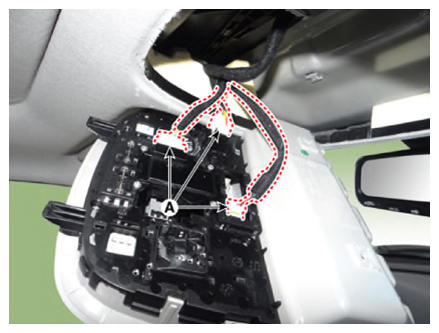

- Remove the overhead console after disconnecting the connectors (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
