Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

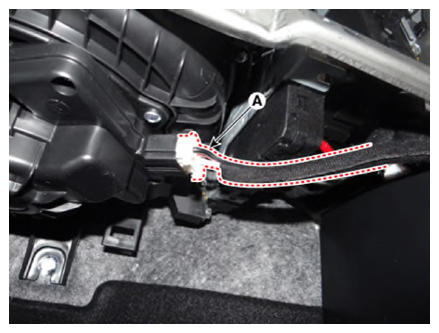

  3. Disconnect the blower motor connector (A).
    G13350896Courtesy of KIA MOTORS AMERICA, INC.

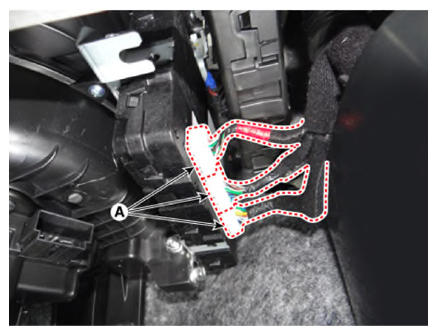

  4. Disconnect the body control module connectors (A).
    G13350897Courtesy of KIA MOTORS AMERICA, INC.

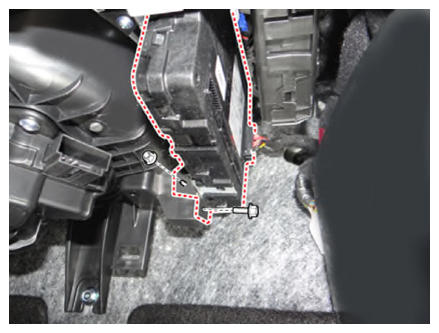

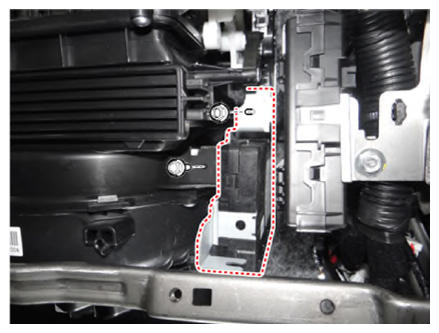

  5. Remove the body control module (A) after loosening the mounting bolts and nuts.
    G13350898Courtesy of KIA MOTORS AMERICA, INC.
    G13350899Courtesy of KIA MOTORS AMERICA, INC.

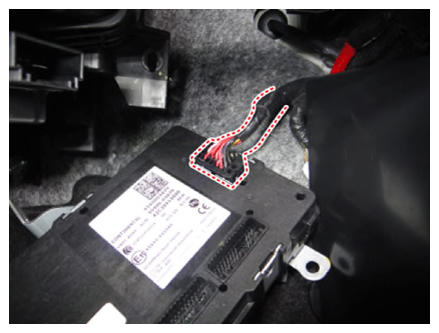

  6. Remove the body control module (B) after disconnecting the connector (A).
G13350900Courtesy of KIA MOTORS AMERICA, INC.
