Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

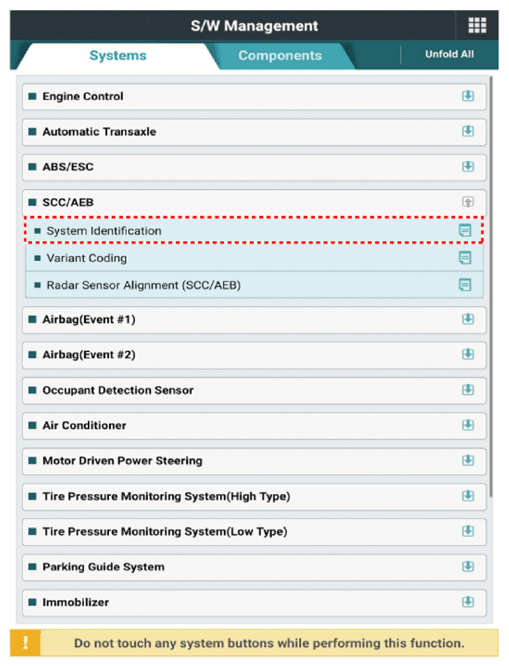

If the front radar unit needs to be replaced, check the system identification by using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

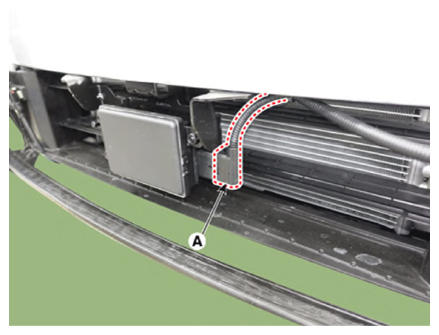

Disconnect the connector (A) from the front radar unit.

Courtesy of KIA MOTORS AMERICA, INC.

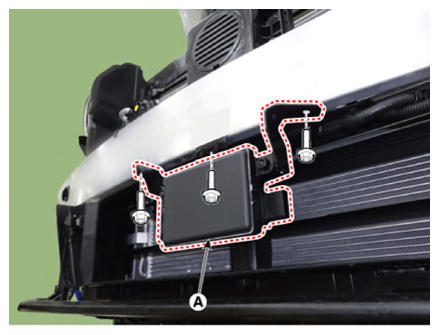

Remove the front radar unit (A) after loosening the mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.
