Variant Coding Procedure

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

■ On-Line on KDS

Switch "OFF" ignition, and connect KDS.
With ignition "ON" & Engine "OFF", select vehicle name and airbag system.

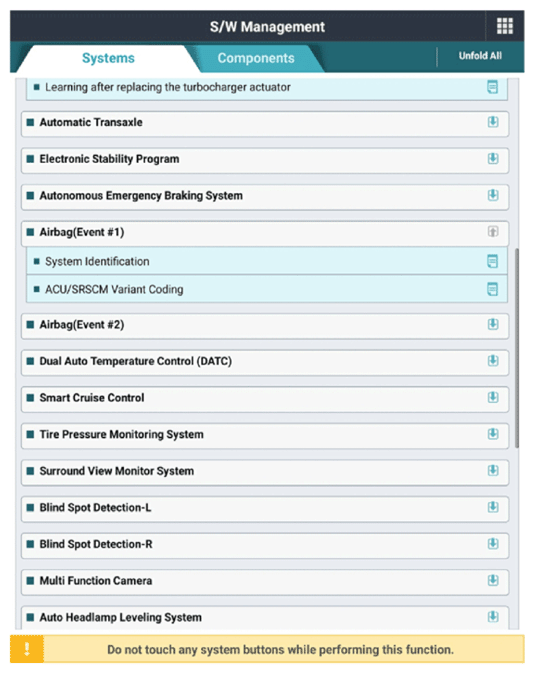

Select Variant coding mode.

Courtesy of KIA MOTORS AMERICA, INC.
Enter the VIN code.

■ Off-Line on KDS

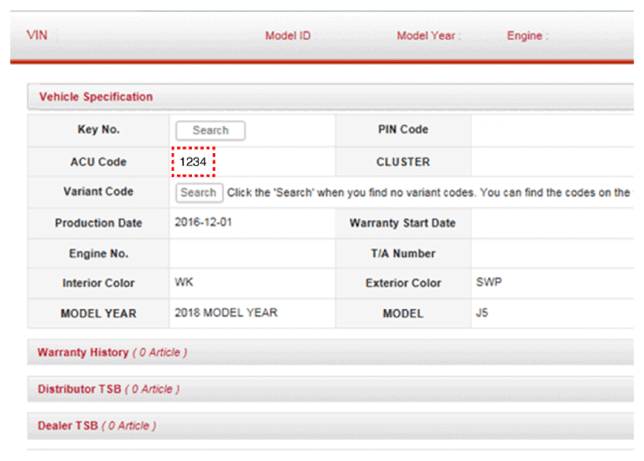

Confirm the ACU variant coding code from the GSW server after inputting the VIN to the GSW sever.

Courtesy of KIA MOTORS AMERICA, INC.
Switch "OFF" ignition, and connect KDS.
With ignition "ON" & Engine "OFF", select vehicle name and airbag system.
Select Variant coding mode.

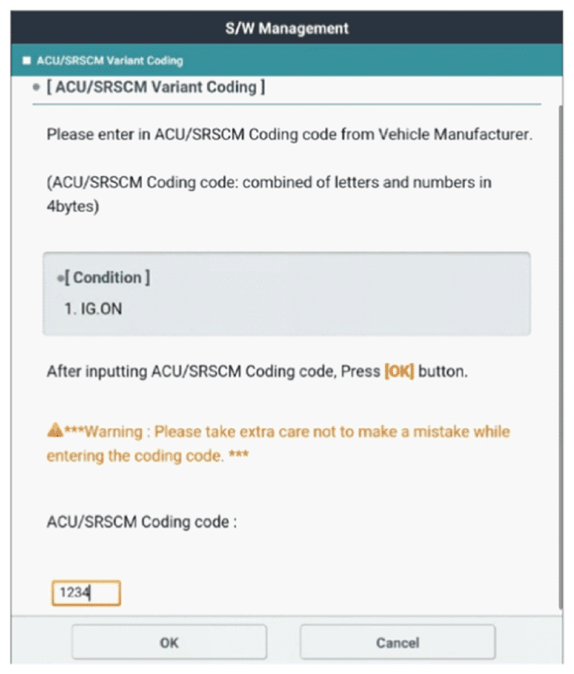

Input the ACU coding code.

Courtesy of KIA MOTORS AMERICA, INC.
