Repair Procedures: Replacement: Rear

  1. Disconnect the battery negative terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  2. Remove the rear seat back assembly.

    (Refer to Body (Interior and Exterior) - "REAR SEAT ASSEMBLY ")

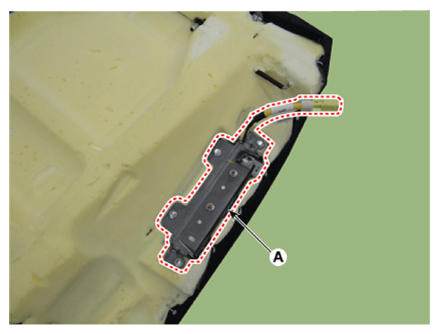

  3. Remove the side airbag module (A).

    Tightening torque:

    5.8 - 7.7 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.7 lb-ft, 52.0 - 69.4 lb-in)

    G13404341Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
