Dust Cap

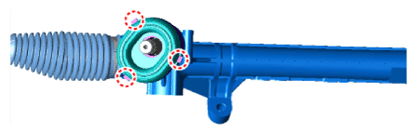

  1. Remove the dust cap cover.
    G13404253Courtesy of KIA MOTORS AMERICA, INC.

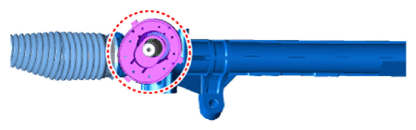

  2. Remove the dust cap.
    G13404254Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
