Repair Procedures: Removal
- Use fender covers to avoid damaging painted surfaces.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
- To release the fuel system pressure before removing the engine assembly, start the engine without fuel pump relay, and then turn off the ignition switch when the engine stops.
Information
- Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
- Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")

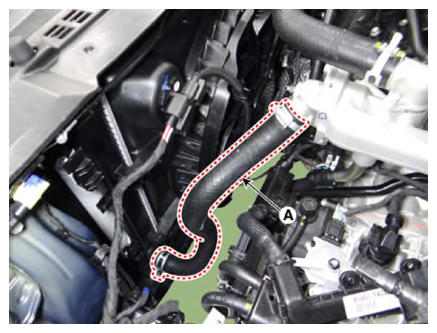

- Disconnect the radiator upper hose (A).

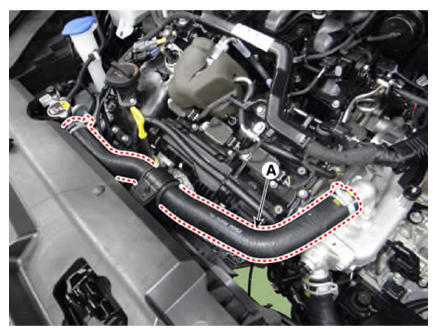

- Disconnect the radiator lower hose (A).

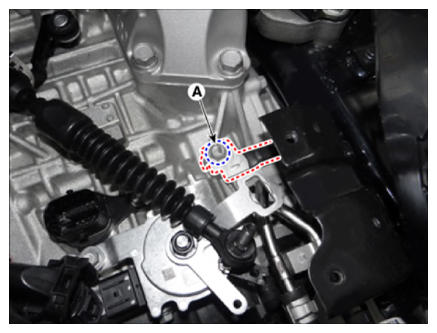

- Disconnect the wire harness connectors and control cables from the transaxle.
(Refer to Automatic Transaxle System - "REPAIR PROCEDURES ")

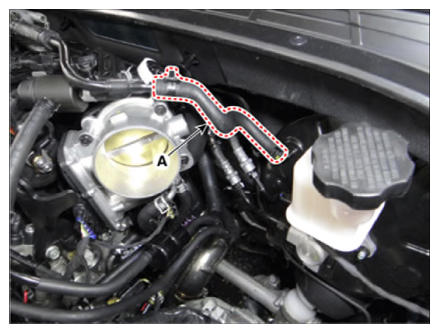

- Disconnect the brake booster vacuum hose (A).

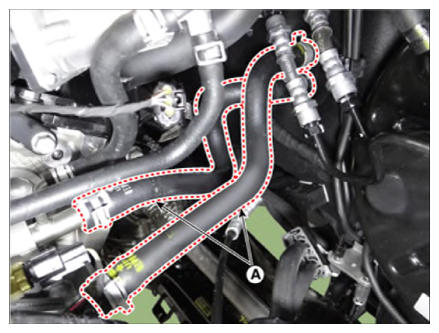

- Disconnect the heater hose (A).

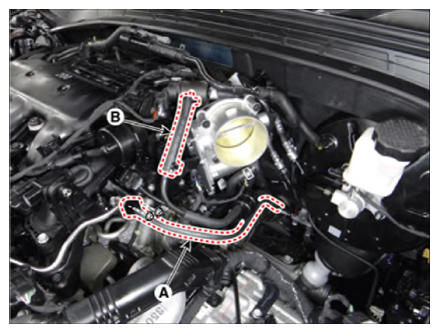

- Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)
- Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.
(Refer to Heating, Ventilation Air conditioning - "COMPRESSOR ")
- Disconnect the wiring connector and harness from the engine room.

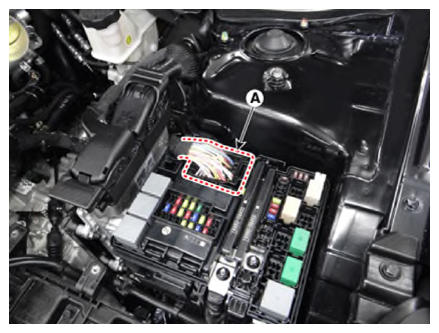

- Disconnect the fuse box main wiring connector (A).

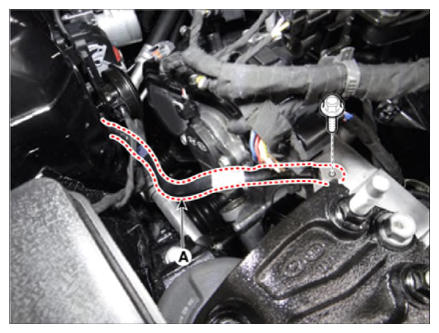

- Disconnect the ground cable (A).
Tightening torque:
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)
- Disconnect the engine control module (ECM) connector (A).
- Remove the main wiring protector (B).

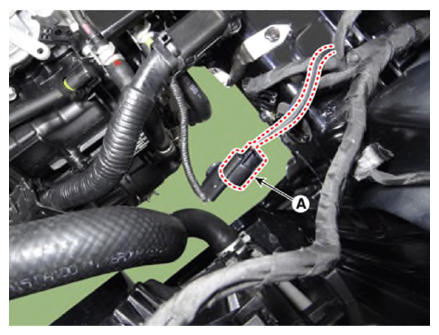

- Disconnect the front connector (A).

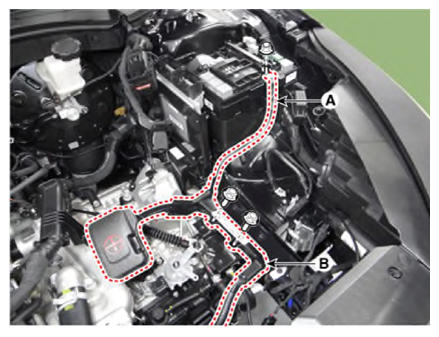

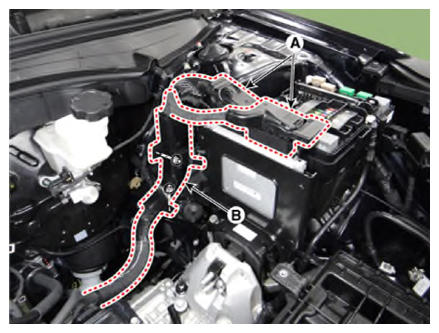

- Disconnect the fuse box wiring cable (A).
- Remove the battery wiring protector (B).
- Disconnect the fuse box main wiring connector (A).

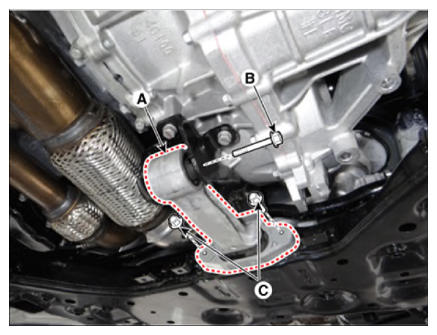

- Remove the roll rod bracket (A).
Tightening torque
Bolt (B): 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)
Bolt (C): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

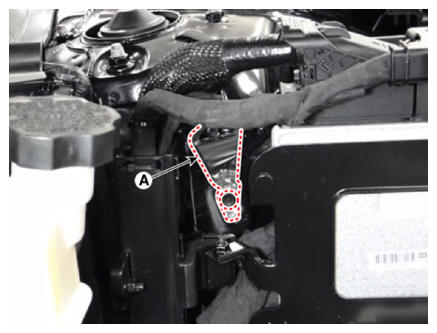

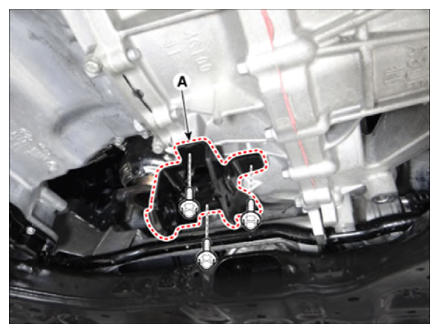

- Remove the roll rod support bracket (A).
Tightening torque:
49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)
- Remove the sub frame.
(Refer to Suspension System - "SUB FRAME ")
- Remove the front muffler.
(Refer to Intake and Exhaust System - "MUFFLER ")
- Support the engine and transaxle assembly on a lift table.
- Disconnect the engine ground cable (A).
Tightening torque:
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)
- Remove the engine mounting support bracket (A).
Tightening torque
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

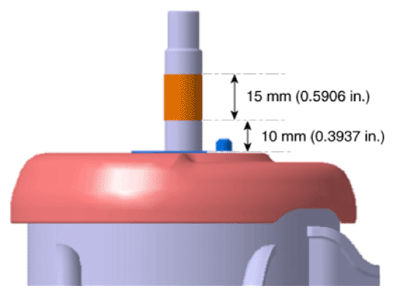

NOTE: Note the items below when installing the engine mounting support bracket. - Disconnect the transaxle ground cable (A).

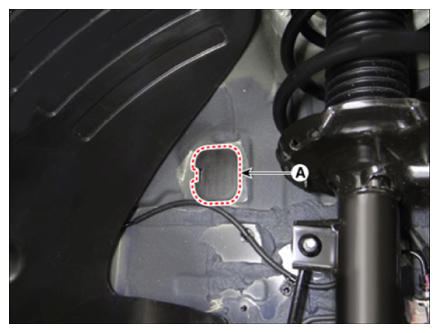

- Remove the service cover (A).

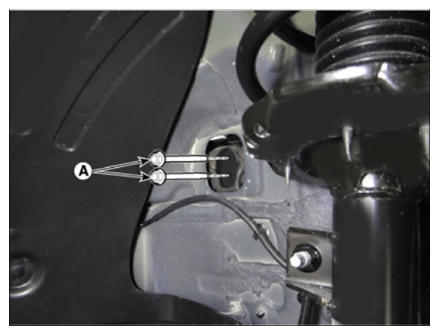

- Remove the transaxle mounting bolts (A).
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

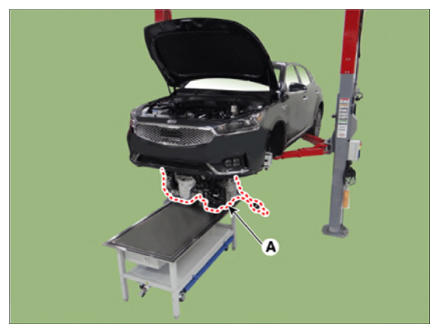

- Remove the engine and transaxle assembly (A) by lifting vehicle.NOTE:
- Before removing the engine and transaxle assembly, make sure hoses and wire connectors are disconnected.
- When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.
