Repair Procedures: Inspection

  1. Switch "OFF" ignition.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

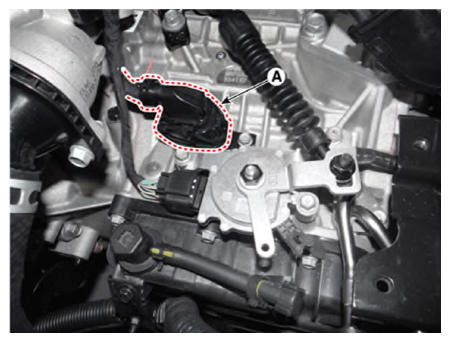

  3. Disconnect the main connector (A).
    G13403771Courtesy of KIA MOTORS AMERICA, INC.

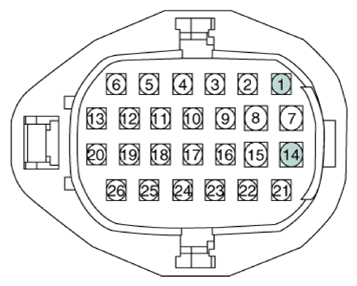

  4. Measure the resistance between power terminal (14) and signal terminal (1).

    Specification  : 5.1 ± 0.3 Ω

    G13403772Courtesy of KIA MOTORS AMERICA, INC.
