Repair Procedures: Replacement
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front door window glass.
(Refer to Front Door - "FRONT DOOR WINDOW GLASS ")

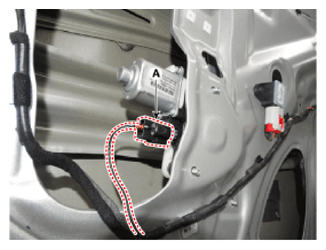

- Disconnect the front door power window motor connector (A).

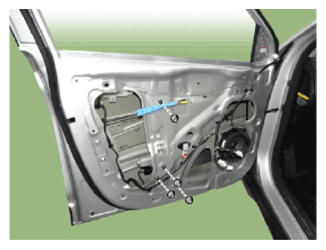

- Loosen the front door power window regulator mounting nuts.
Tightening Torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

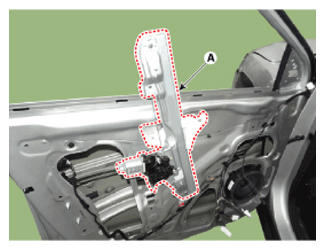

- Remove the front door power window regulator assembly (A).
- To install, reverse removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
