Repair Procedures: Installation
Install in the reverse order of removal.
NOTE:
Check that the shift lever and manual control lever are placed in the "N" position.

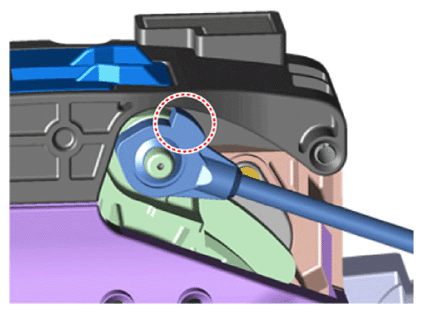

Install the shift cable after checking the direction of projection to prevent wrong assembly.
Courtesy of KIA MOTORS AMERICA, INC.

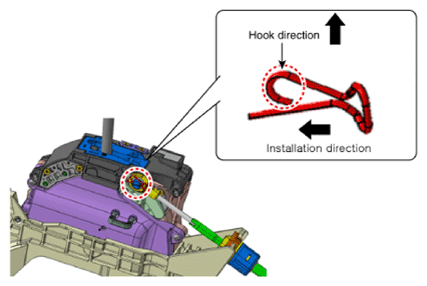

Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
Courtesy of KIA MOTORS AMERICA, INC.
