Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

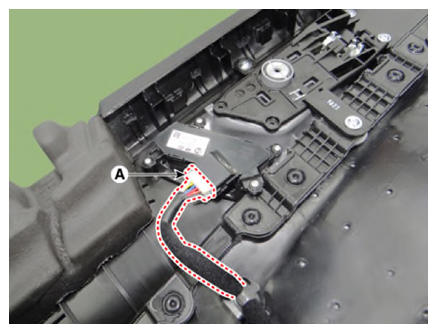

  3. Remove the memory power seat switch connector (A).
    G13364111Courtesy of KIA MOTORS AMERICA, INC.

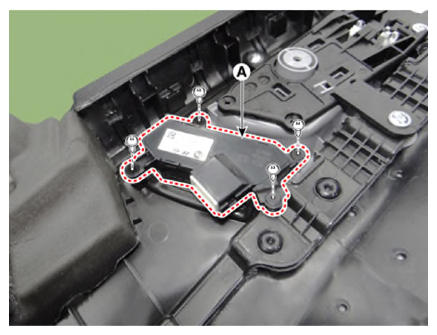

  4. Remove the memory power seat switch (A) after loosening the mounting screws.
G13364112Courtesy of KIA MOTORS AMERICA, INC.
