Removal And Installation

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower cover,

    (Refer to Body - "CRASH PAD ")

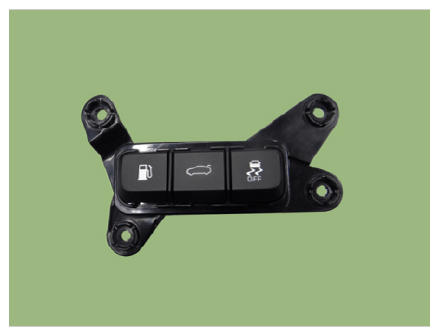

  3. Disconnect the crash pad side switch assembly.
    G13362982Courtesy of KIA MOTORS AMERICA, INC.

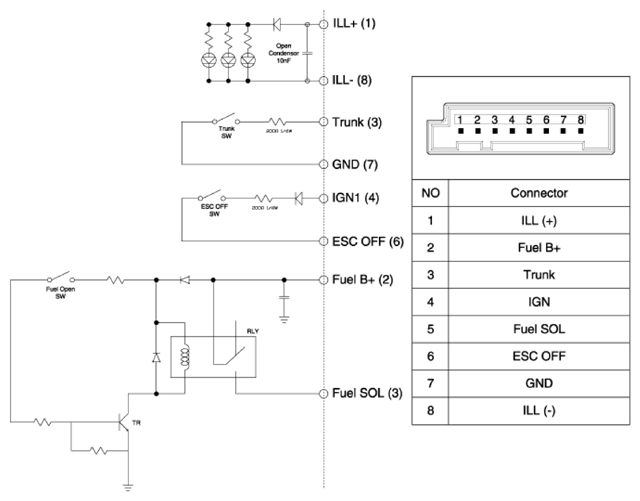

  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    G13362983Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
