Components & Components Location: Components

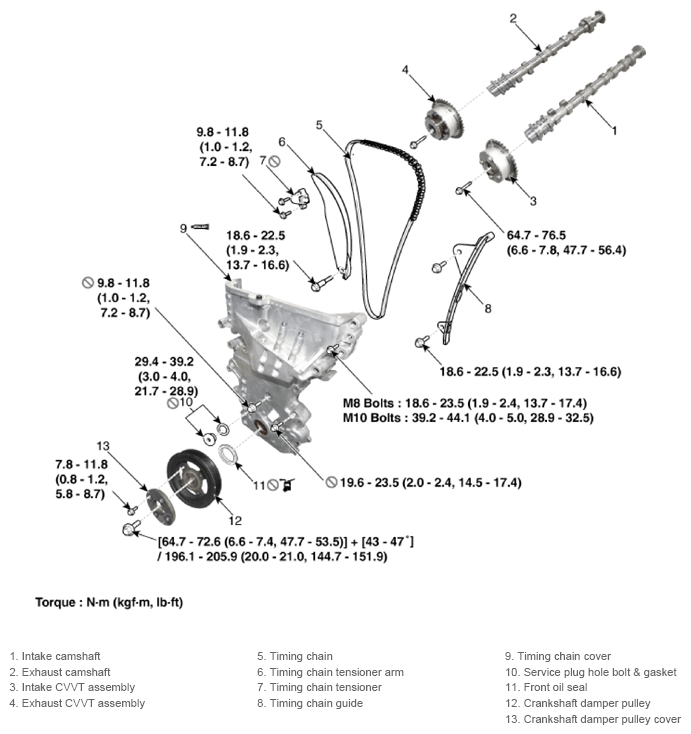

Fig 1: Timing System Components With Torque Specification
G13361348Courtesy of KIA MOTORS AMERICA, INC.
