Rear Power Window Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

  3. Loosen the power window switch assembly mounting screws.
  4. Remove the power window switch assembly (A) after disengaging the mounting clips.
    G13390649Courtesy of KIA MOTORS AMERICA, INC.

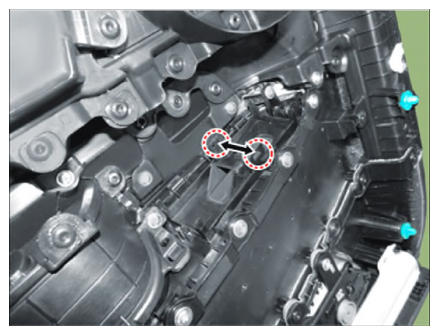

Information

G13390650Courtesy of KIA MOTORS AMERICA, INC.
