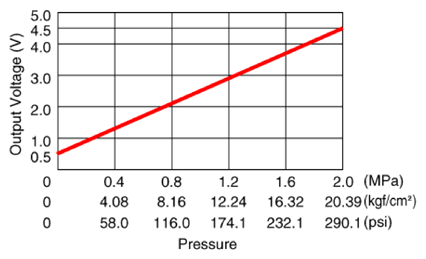

Clutch Pressure Sensor (CPS): Specifications: Specification

Pressure[MPa (kgf/cm² , psi)]	Output Voltage (V)
0 (0, 0)	0.5
0.2 (2.04, 29.0)	0.9
0.4 (4.08, 58.0)	1.3
0.6 (6.12, 87.0)	1.7
0.8 (8.16, 116.0)	2.1
1.0 (10.20, 145.0)	2.5
1.2 (12.24, 174.1)	2.9
1.4 (14.28, 203.1)	3.3
1.6 (16.32, 232.1)	3.7
1.8 (18.35, 261.1)	4.1
2.0 (20.39, 290.1)	4.5

G13365001

Courtesy of KIA MOTORS AMERICA, INC.
