Disassembly And Assembly

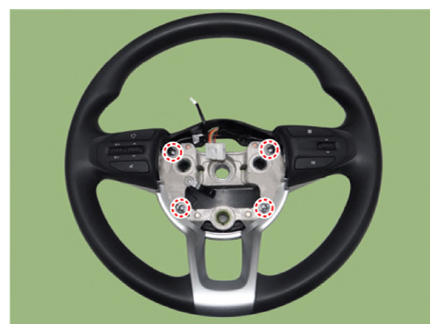

  1. Loosen the steering wheel screw.
    G13412925Courtesy of KIA MOTORS AMERICA, INC.

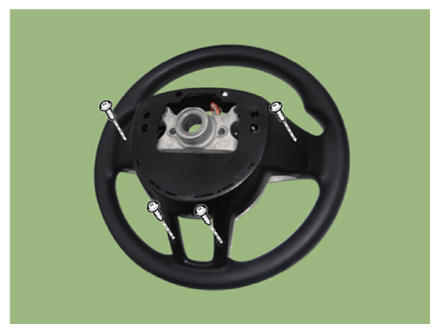

  2. Loosen the steering wheel lower cover srew.
    G13412926Courtesy of KIA MOTORS AMERICA, INC.

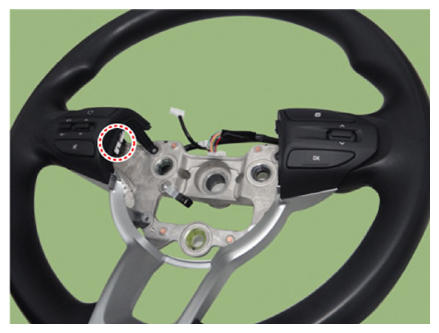

  3. Disconnect the switch connector.
    G13412927Courtesy of KIA MOTORS AMERICA, INC.

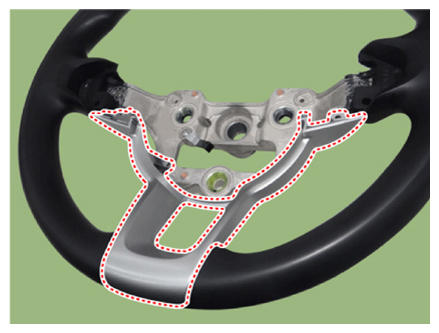

  4. Remove the bezel.
    G13412928Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
