Monitor DTC Status

Connect KDS to Data Link Connector (DLC).
Ignition "ON".

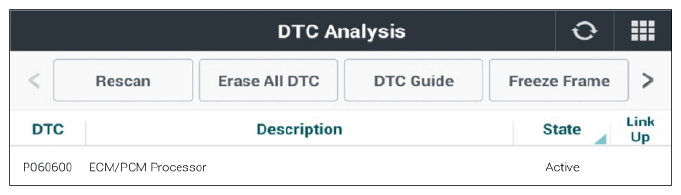

Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
Is DTC status displayed as Present?

Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Go to "VERIFICATION OF REPAIR " procedure.
