Throttle Position Sensor Inspection

Ignition "OFF".
Connect VMI to KDS and set up an oscilloscope as follow (2-channel);
Channel A (+): Pin No. 4 (TPS1 Signal) terminal of Throttle Body.

Channel A (-): Ground

Channel B (+): Pin No. 5 (TPS2 Signal) terminal of Throttle Body.

Channel B (-): Ground
Ignition "ON" & Engine "ON".
Testing Condition: Idle to Acceleration (W.O.T).

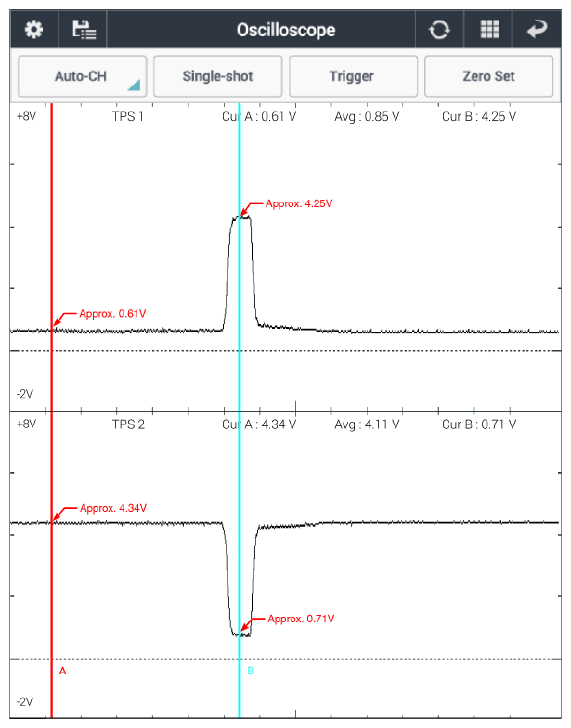

Specification : Refer to illustration below

Courtesy of KIA MOTORS AMERICA, INC.

* Sum of TPS1 and TPS2 signal voltage should equal to approximately 5V.
Is the measured value within specification?
YES
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
NO
- Go to next procedure.
