Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery (-) terminal.

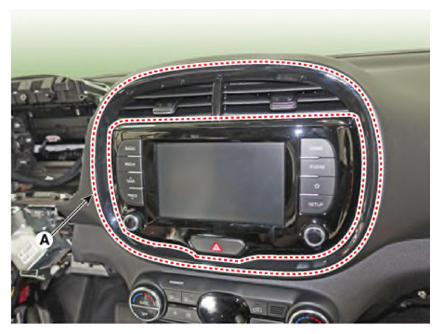

Using a screwdriver or remover, remove the center fascia panel (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the audio and AVN head unit.
(Refer to Body Electrical System - "AUDIO/AVN HEAD UNIT ")

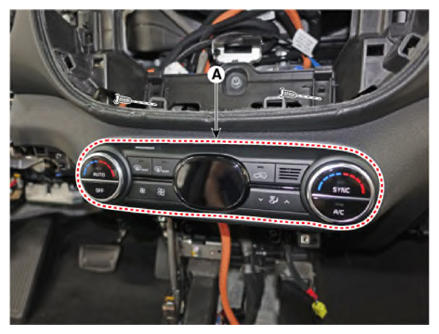

After loosening the mounting screws, remove the A/C & heater controller unit (A).

Courtesy of KIA MOTORS AMERICA, INC.

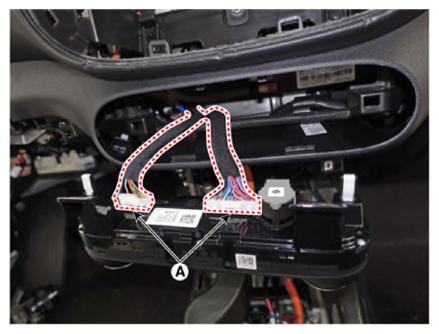

Disconnect the A/C & heater controller connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

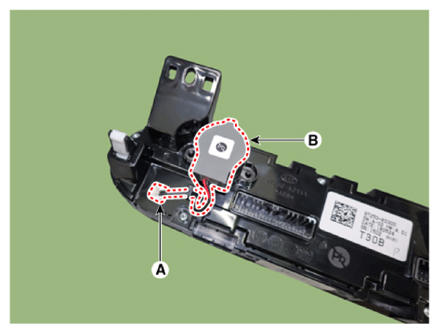

Press the lock pin to separate the connector (A) and remove the in-car sensor (B).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
NOTE:
- Reassemble the connector correctly.
- Replace any damaged clips.
