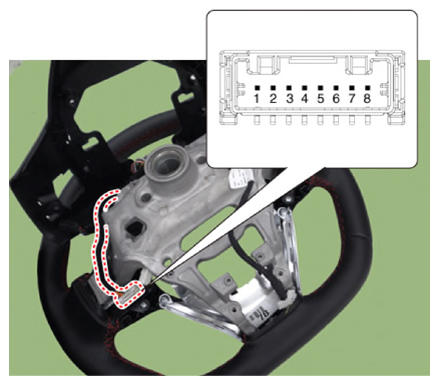

- Check for resistance between terminals in each switch position.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Switch |
Connector terminal |
Resistance (±3%) |
| Cancel |
2-6 |
610 Ω |
| SET - |
910 Ω |
| RES + |
1.38 kΩ |
| Cruise ON/OFF |
2.13 kΩ |
| Cruise & Speed Limit ON/OFF |
3.63 kΩ |
| SCC (Following distance control) |
7.93 kΩ |
| Trip group |
1-6 |
610 Ω |
| Trip up |
910 Ω |
| Trip down |
1.38 kΩ |
| Trip OK/Reset |
2.13 kΩ |
