Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console side cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

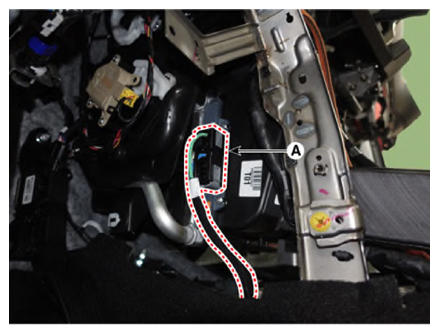

  3. Disconnect the PTC heater connector (A).
    G13283033Courtesy of KIA MOTORS AMERICA, INC.

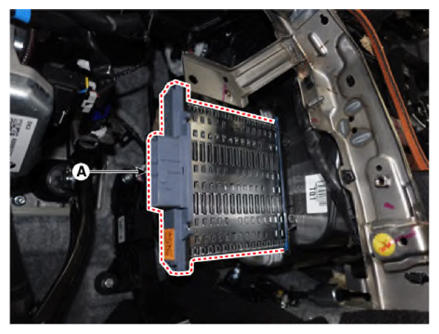

  4. Remove the PTC heater core (A) after loosening the PTC heater mounting screws.
    G13283034Courtesy of KIA MOTORS AMERICA, INC.
  5. To install, reverse the removal procedure.
