Driver's side

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

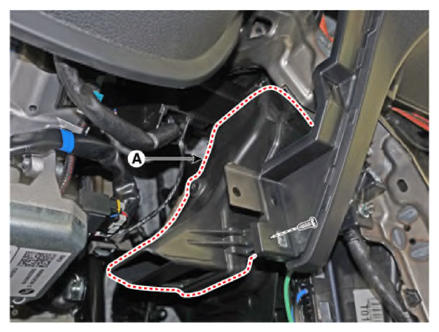

  3. Remove the lower duct (A) after loosening the screw.
    G13283037Courtesy of KIA MOTORS AMERICA, INC.

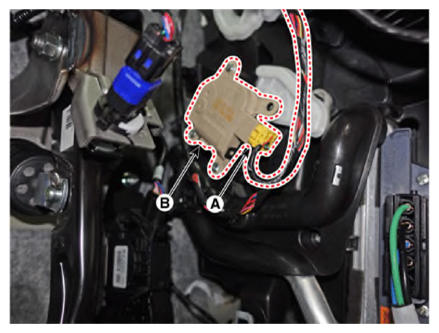

  4. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
    G13283038Courtesy of KIA MOTORS AMERICA, INC.
  5. To install, reverse the removal procedure.
