Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Vehicle S/W Management" of concerned component with KDS.	Fig.1 to 9

G13284467

Courtesy of KIA MOTORS AMERICA, INC.

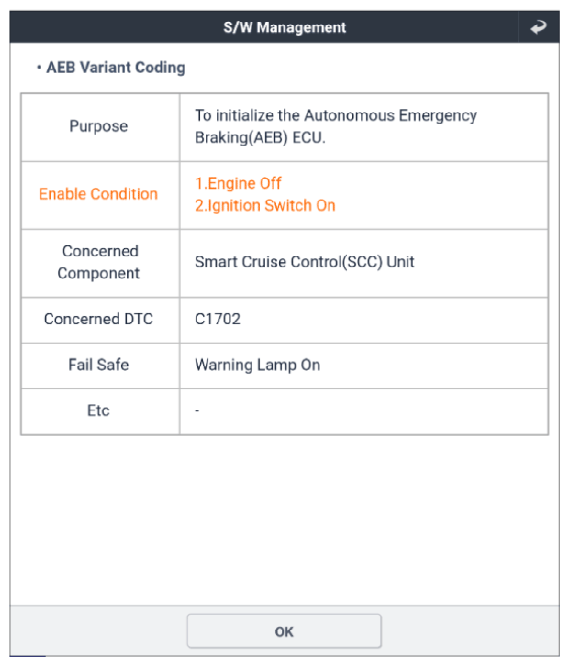

G13284468

Courtesy of KIA MOTORS AMERICA, INC.

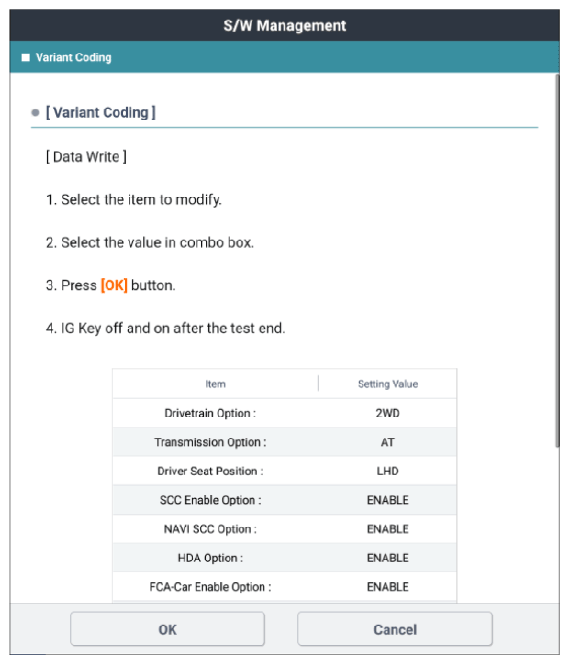

G13284469

Courtesy of KIA MOTORS AMERICA, INC.

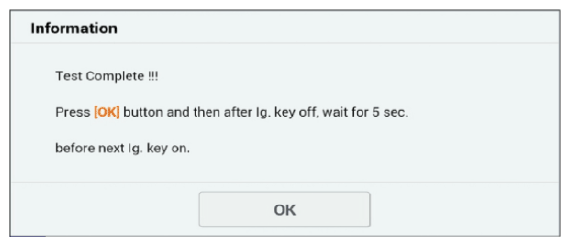

G13284470

Courtesy of KIA MOTORS AMERICA, INC.

G13284471

Courtesy of KIA MOTORS AMERICA, INC.

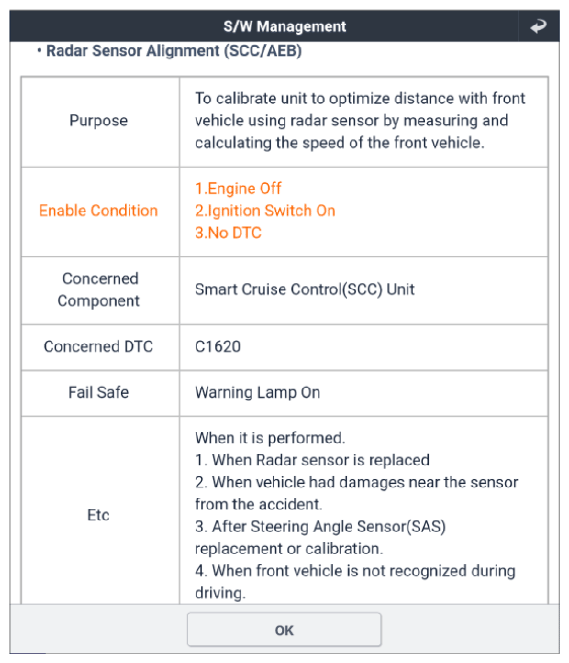

G13284472

Courtesy of KIA MOTORS AMERICA, INC.

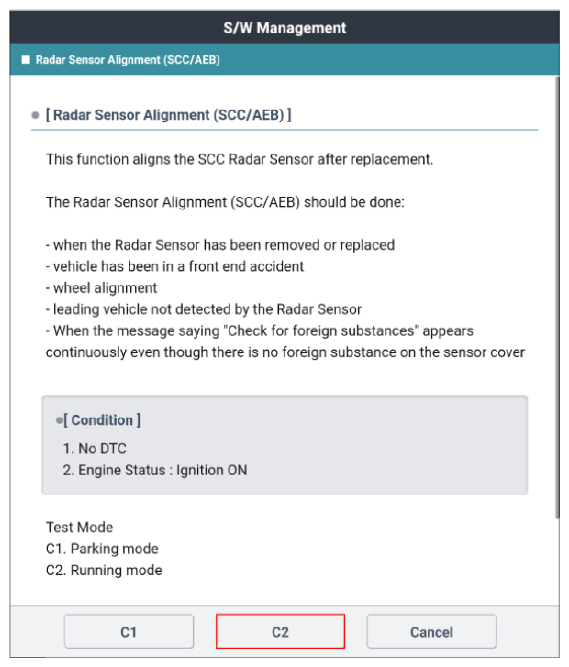

G13284473

Courtesy of KIA MOTORS AMERICA, INC.

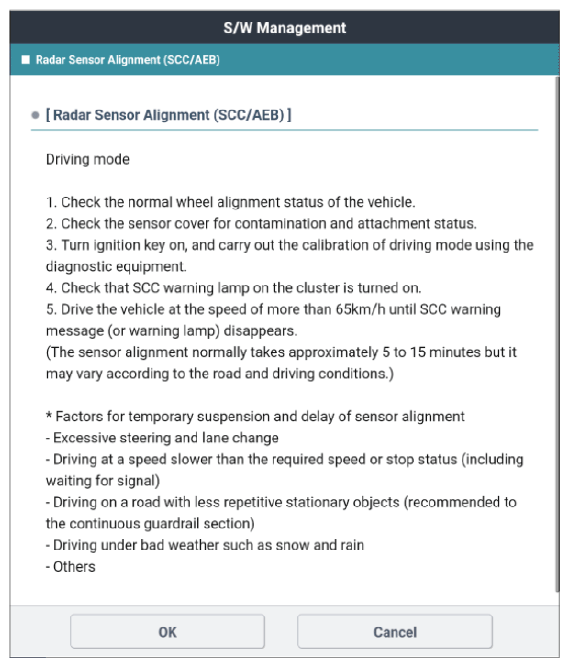

G13284474

Courtesy of KIA MOTORS AMERICA, INC.

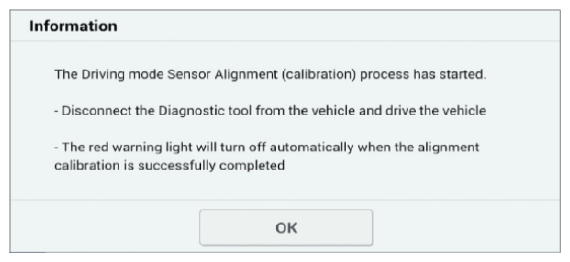

G13284475

Courtesy of KIA MOTORS AMERICA, INC.
