Repair Procedures: Inspection
WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.

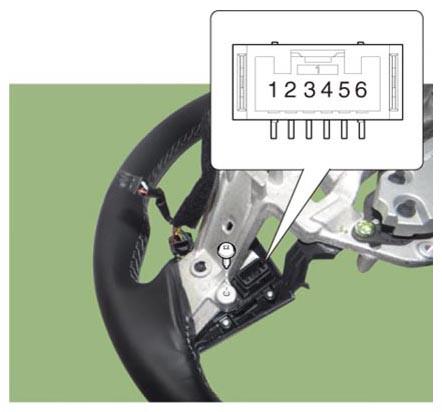

- Check for resistance between terminals in each switch position (LH).
[LH: Audio + Bluetooth + Voice]

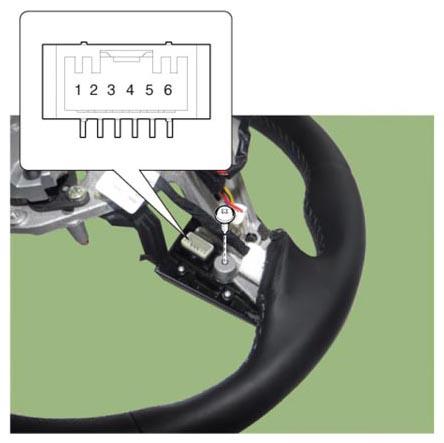

Switch Connector terminal Resistance (Ω±3%) SEEK Up 1-6 430 Ω SEEK Down 1.11 kΩ MODE 2.11 kΩ MUTE 3.11 kΩ Volume (+) 4.61 kΩ Volume (-) 6.81 kΩ Voice 10.71 kΩ END 18.91 kΩ SEND 40.91 kΩ - Check for resistance between terminals in each switch position (RH).
[RH: Trip + ACC + SCC]
Switch Connector terminal Resistance (Ω±3%) Cancel 2-6 390 Ω SET - 610 Ω RES + 910 Ω Cruise ON/OFF 1.38 kΩ Cruise & Speed Limit ON/OFF 2.13 kΩ SCC (Following distance control) 3.63 kΩ Group 1-6 390 Ω Trip Up 610 Ω Trip Down 910 Ω ENTER 1.38 kΩ
