Repair Procedures: Installation

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front tires straight-ahead before assembling the steering wheel.
    CAUTION: If the steering wheel and the front tires are not set straight ahead together, it may affect the number of circulation of steering wheel and damage the cable inside the clock spring.
  2. Connect the clock spring harness connector and horn harness connector to the clock spring.
  3. Factory setting for the clock spring is neutral.
    1. If white cable is visible through the Neutrality Checking Window on 10 o'clock position of product, the spring is at neutral.
    2. If white cable is not visible through the Neutrality Checking Window on 10 o'clock position of product, then manually adjust the setting to neutral.
    Neutrality checking window: Normal Neutrality Checking Window: Faulty

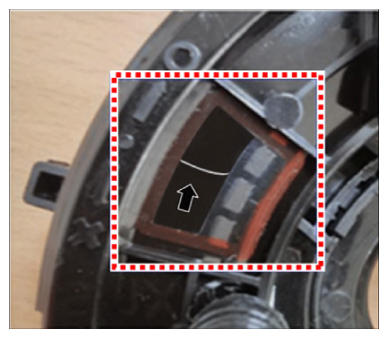

    G12795625Courtesy of KIA MOTORS AMERICA, INC.

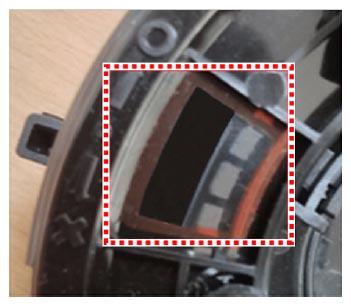

    G12491136Courtesy of KIA MOTORS AMERICA, INC.
    White cable is visible through Neutrality Checking Window on 10 o'clock position. White cable is not visible through Neutrality Checking Window on 10 o'clock position.
  4. Manual neutrality setting procedure of clock spring
    1. Press the Auto Lock at 6 o'clock and make 3 clockwise rotations.
      G12795627Courtesy of KIA MOTORS AMERICA, INC.
    2. Press the Auto Lock at 6 o'clock and make 3 counter-clockwise rotations.
    3. If white cable is visible through the Neutrality Checking Window on 10 o'clock position, then the spring is set to neutral.

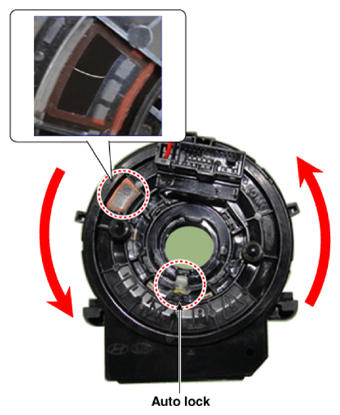

    G12795628Courtesy of KIA MOTORS AMERICA, INC.
  5. Install the steering wheel column shroud and the steering wheel.

    (Refer to Steering System - " STEERING WHEEL  ")

  6. Connect the Driver Airbag (DAB) module connector and horn connector, and then install the Driver Airbag (DAB) module on the steering wheel.
  7. Connect the negative battery terminal.
  8. After installing the airbag, confirm proper system operation:
    • Switch "ON" the ignition. The SRS indicator light should turn on for about six seconds and then off.
    • Make sure that horn button works.
