Repair Procedures: Inspection: Notes

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF.
  2. Remove the front bumper assembly.

    (Refer to Body - " FRONT BUMPER ASSEMBLY  ")

  3. Disconnect ambient temperature sensor.

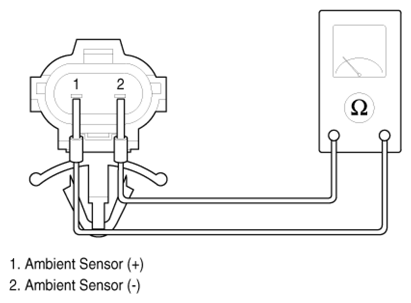

  4. Check the resistance of the ambient temperature sensor between terminals 1 and 2 and see if it changes with the ambient temperature.
G12799091Courtesy of KIA MOTORS AMERICA, INC.
