Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH front tire.
(Refer to Suspension System - Wheel ')
Remove the front wheel guard [RH].
(Refer to Body - " FRONT WHEEL GUARD ")
Loosen the drive belt.
G 2.0 T-GDI-THETA (Refer to Engine Mechanical System - " DRIVE BELT ")

G 3.3 T-GDI-LAMBDA (Refer to Engine Mechanical System - " DRIVE BELT ")

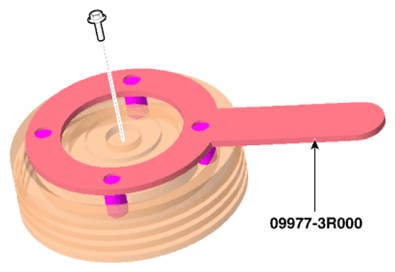

Remove the center bolt (A) and the hub bolts (B) while holding the pulley with a disc & hub assembly bolt remover (09977-3R000).
Tightening torque:

15 - 21 N.m (1.5 - 2.1 kgf.m, 11.1 - 15.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the hub assembly (A) and shim (gap washer) (B), taking care not to lose the shim.

Courtesy of KIA MOTORS AMERICA, INC.

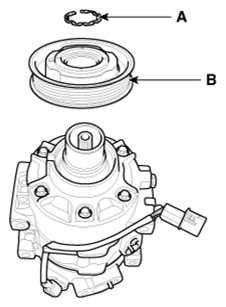

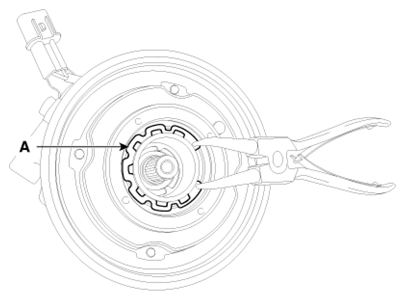

Remove the pulley (B) after removing the snap ring (A) with snap ring pliers.
NOTE:
- Be careful not to damage the pulley and compressor during disassembly/reassembly.
- Once snap ring is removed, replace it with a new one.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse order of disassembly.
NOTE:
- Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
- Install new snap ring, and make sure they are fully seated in the groove.
- Make sure that the pulley turns smoothly after reassembly.
