Repair Procedures: Installation
WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.
- Make sure that the compressor (A) mounting bolt of the correct length is screwed in. Tighten the mounting bolts in the specified tightening order.
Tightening torque: 20.00 - 32.95 N.m (2.04 - 3.36 kgf.m, 14.75 - 24.30 lb.ft)

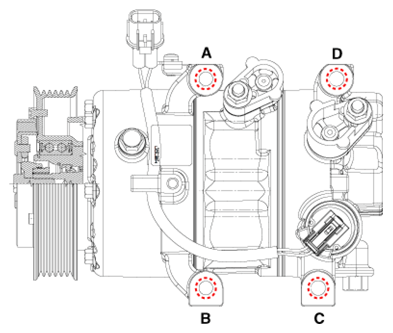

[Lambda Engine]
Courtesy of KIA MOTORS AMERICA, INC.

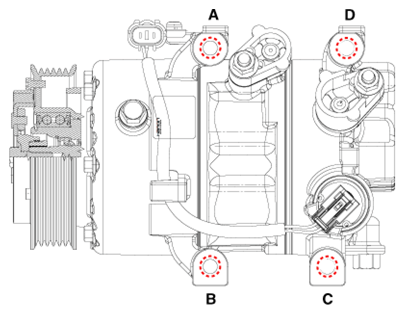

[THETA Engine]
- Install in the reverse order of removal.
When installing a new compressor, drain all the refrigerant oil from the removed compressor and measure its volume. Subtract the volume of drained oil from the original capacity to calculate the amount of compressor oil that needs to be drained from the new compressor (through the suction fitting).
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- Immediately after using the oil, replace the cap on the container and seal it to avoid moisture absorption.
